Honor series 98000 capacity CHIP 0.03mm SMT placement machine
Machine main features
- Lightweight, the head is integrally formed, and the 10 sets of Z axis are independently controlled by modular magnetic linear motor, which greatly improves the speed, accuracy and stability.
- Precise corner system: The modular corner system independently controls the angle of each component to ensure high-precision placement. 10 suction nozzles per head, center distance 16mm.
- Vacuum sensing device: Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product;

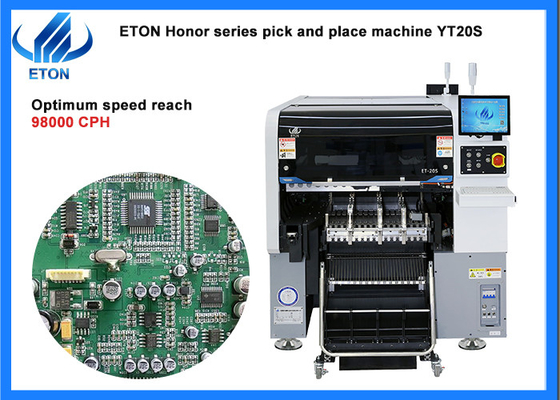

- Ultra high speed capability: Adopt high-end magnetic linear motor, servo system and multi function modular head, the capacity increased by 25% compared with traditional machine, optimum speed reach 98000 CPH;
Machine main parameter
| Model |
YT-20S |
| PCB size |

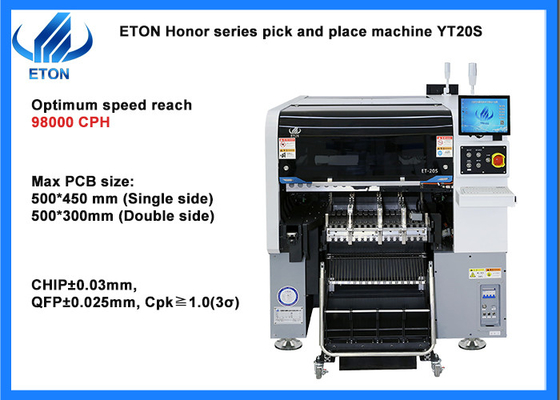

Max size: 500*450 mm(Single side)
500*300(Double side)
Min size: 50*50 mm
|
| PCB thickness |
0.5-5 mm |
| PCB clamping |
Cylinder clamping, track width adjustable |
| Software |
R&D independently |
| Production management MES system |
Customized (Option) |
| Off-line programming |
Available |
| Camera |
Vision alignment + Mark correction |
| Repeat precision |
CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ) |
| Mounting height |
20 mm |
| Position mode |
Optical |
| Optimal speed |
98000 CPH |
| Component range |
Min 0201~40*40 mm package and IC etc. |
| Position mode |
Optical |
| No.of heads |
Double side:20 PCS
Single side:10 PCS
|
| Feeding way |
Intelligent double head feeder |
| X,Y,Z Axis drive way |
High end magnetic linear motor |
| Power |
1Φ 220AC 50HZ 1.5KW |
Packages
Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
SMT Line solution
Service
- We provide whole line solution for our clients needs.
- We have some official site in India as Mumbai, Dammam and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
- As long as you buy our machine we will arrange our engineers to install debug and training for you for free, until you learned how to operate the machine.
- Chinese engineer can provide online services especially in the period of the COVID-19 epidemic.
- If necessary, Chinese engineers will come to your factory for free install and training you how to operate the machine.
- Free up-date of the machine’s software.
- We will arrange our engineers to visit your factory for check or test the status of the machine.
Our advantage
We can provide SMT line solution for you!

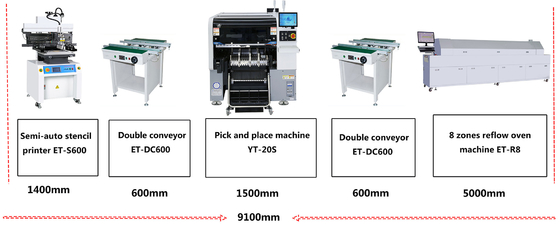

Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc
