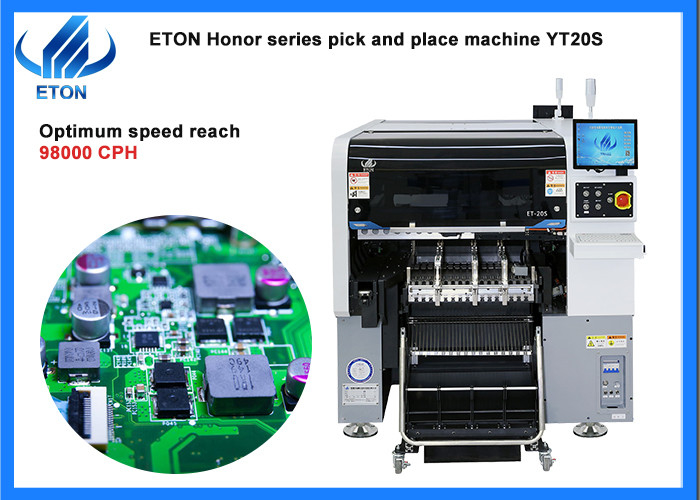

PCB Max 500*450 mm SMT Placement Machine Lower Power Consumption

PCB Max 500*450 mm SMT Placement Machine Lower Power Consumption
PCB Max 500*450 mm SMT Placement Machine Lower Power Consumption

Large Image :  PCB Max 500*450 mm SMT Placement Machine Lower Power Consumption

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA
Model Number: YT20S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Applicable Components: Min 0201~40*40 Mm Package And IC Etc.
Name: SMT Automatic Pick And Place Machine Application: LED Lights, Electrical Products, Household Appliance
Power Supply: 1Φ 220AC 50HZ 1.5KW Condition: New
Weight: 2340KG Mounting Speed: 98000CPH
Dimension: 1500*2690*1650MM Pcb Thickness: 0.5-5 Mm
High Light:

SMT Placement Machine 1.5KW

,

500*450 mm SMT Placement Machine

,

SMT Placement Machine Lower Power Consumption

Lower power consumption PCB Max 500*450 new innovation placement machine



Machine main features

  • Lightweight, the head is integrally formed, and the 10 sets of Z axis are independently controlled by modular magnetic linear motor, which greatly improves the speed, accuracy and stability.
  • Precise corner system: The modular corner system independently controls the angle of each component to ensure high-precision placement. 10 suction nozzles per head, center distance 16mm.
  • Vacuum sensing device: Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product;
  • Ultra high speed capability: Adopt high-end magnetic linear motor, servo system and multi function modular head, the capacity increased by 25% compared with traditional machine, optimum speed reach 98000 CPH;

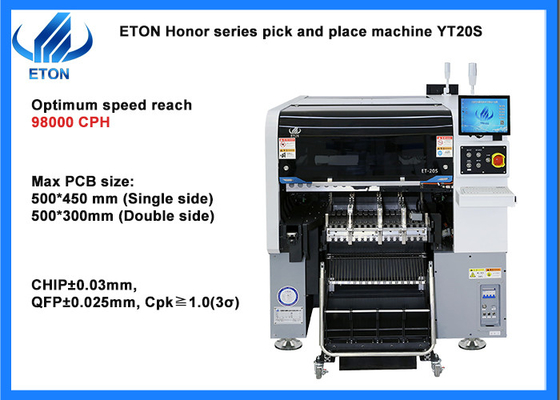

Machine main parameter

Model YT-20S
PCB size

Max size: 500*450 mm(Single side)

500*300(Double side)

Min size: 50*50 mm
PCB thickness 0.5-5 mm
PCB clamping Cylinder clamping, track width adjustable
Software R&D independently
Production management MES system Customized (Option)
Off-line programming Available
Camera Vision alignment + Mark correction
Repeat precision CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Mounting height 20 mm
Position mode Optical
Optimal speed 98000 CPH
Component range Min 0201~40*40 mm package and IC etc.
Position mode Optical
No.of heads

Double side:20 PCS

Single side:10 PCS
Feeding way Intelligent double head feeder
X,Y,Z Axis drive way High end magnetic linear motor
Power 1Φ 220AC 50HZ 1.5KW



Machine application

PCB Max 500*450 mm SMT Placement Machine Lower Power Consumption 0

Our Exhibitions

As an experienced company of trading SMT pick and place machine with more than 30 countries and regions aboard, Eton has participated in many exhibitions of foreign countries, such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc. And also we have took part in our domestic exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.

PCB Max 500*450 mm SMT Placement Machine Lower Power Consumption 1

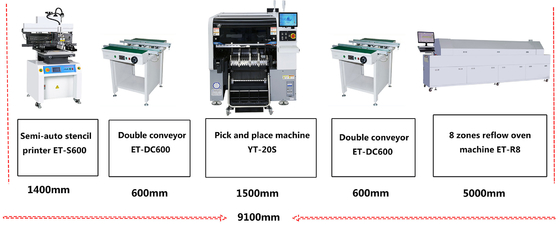

Related machine

ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.

PCB Max 500*450 mm SMT Placement Machine Lower Power Consumption 2

Packages

As for the package of the machine, we put it in film packing and foam cotton, to prevent the dust and water of protecting the machine and keep dry of the machine during transportation, and equip with wooden boxes to transport to the specified port.

PCB Max 500*450 mm SMT Placement Machine Lower Power Consumption 3
