Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Applicable Components: | 0402 |
---|---|---|---|
Condition: | 100% Original,Brand-new | Name: | SMT Pick And Place Machine |
Application: | SMT Production Line | Mounting Speed: | 250000 CPH |
Type: | Automatic | Feeders: | 68pcs |
High Light: | Automatic Feeding SMT Mounting Machine CCC,1m LED SMT Mounting Machine,SMT Mounting Machine For 1m Strip |

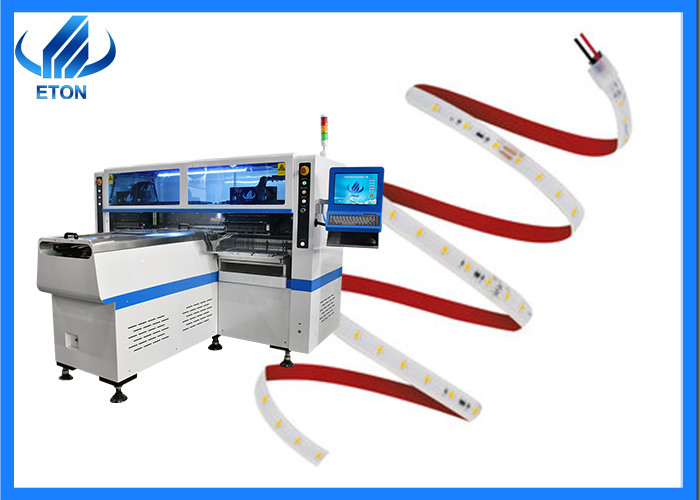

Automatic feeding function SMT Mounting Machine 250000CPH for 1m LED strip light Pick and place machine
The main parameter
Length | 2700mm |
Width | 2300mm |
Height | 1550mm |
Total weight | 1700kg |
PCB Length width | Max: 1200*330mm Min: 100*100mm |
PCB Thickness | 0.5-5mm |
PCB clamping | Adjustable pressure pneumatic |
Transmission speed | >500mm/sec |
Conveyor transmission | Max length: 1200mm |
Repeating Mounting precision | ±0.02mm |
Component space | 0.5mm |
Component height | ≤5mm |
Transmission direction | Single (left→ right or right→ left) |
No. Of feeders station | 68PCS |
No. Of head | 68PCS |
Operating environment | 23℃±3℃ |
Power consumption | 6KW |
Transmission mode | Online drive |
Positioning way | Optical |
X, Y, Z Axis drive way | High-end magnetic linear motor and serve motor |
Feeding way | Electric feeder with double motor |
The Features
1. Magnetic linear motor and servo motor pick and place machine, Producing with 4 types materials at the same time with high capacity.
2.It is suitable for the 0.6M, 0.9M rigid PCB and 0.5M,1M LED flexible strip and Available for board with any proportion of LED chip and resistor.
3. It has Dual arm four module, 17 nozzles for each mounting part, part A or B can be mounted separately or synchronously.
4. Mounting mode: group picking and group placing.
5. The optimum capacity can reach 250000CPH.
Company profile
1.Strong research and develop technology team, support machine upgrade continuously, support client strong technical support
2. Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China
3. Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province
4.Provide engineer Door-to-door service, support video online training, video training share,free replaced machine core part during warranty.
5.Company five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Packaging of LED lights
In terms of packaging, from the early in-line 3MM, 5MM, 8MM, 10MM, piranha. Late development patch 0805, 0603,
1206, now 1210 (3528), 5050 and other TOPLED series. Therefore, the LED light bar is also developed from the ordinary in-line type to the 0805
And 0603, 1206, and the hottest 5050 series products in the market now. It is worth noting that the brightness of the LED lamp is directly related to the chip.
couplet. At present, chip packages are available in 9MIL, 12MIL, 14MIL and other sizes. Theoretically speaking, the larger the chip, the higher the power and brightness. Of course, the price
The price is also more expensive. At present, many companies in the market use the package appearance of 5050, but actually use small chips with relatively low brightness, so that
The price is low, but the quality is not good, which is irresponsible to customers. When using, carefully identify the welding process and
Brightness, the difference between which can be quickly identified with an instrument.

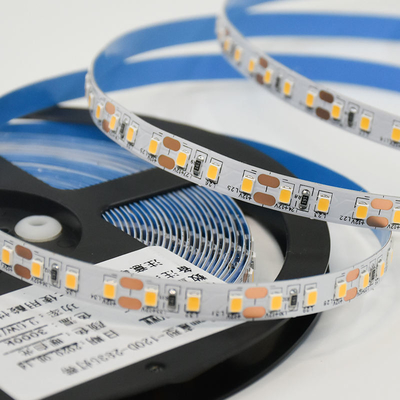

Packaging of LED strips
LED light strips are divided into two types: LED flexible light strips and LED hard light strips. The differences are as follows:
1. The flexible LED light bar is assembled with FPC as circuit board, and assembled with SMD LED. The thickness of the product is only 1MM.
Thickness, does not take up space; the general specification is 30 lights per meter, 48 lights and 60 lights, etc. Different users have different specifications. And can be cut at will, also
It can be extended arbitrarily without affecting the light emission. The FPC material is soft and can be bent, folded and wound at will, and can be moved and moved freely in three-dimensional space.
Stretches without breaking. It is suitable for use in irregular places and places with small spaces, and because it can be bent and wound arbitrarily, it is suitable for
Various patterns can be combined arbitrarily in advertising decoration. It is worth reminding that there are many kinds of materials for FPC itself, and the formal ones used in the market are
The double-sided FPC made of rolled copper, of course, many companies are also blindly pursuing the reduction of material costs, and the FPC made of electrolyte is used.
The degraded FPC is easy to peel off during the welding process, which directly leads to virtual welding and dead lights. In addition, both in terms of electrical conductivity and flexibility
Degradation is unable to compete with rolled copper.
