Product Details:
Payment & Shipping Terms:
|
Name: | ET-C600 | Application: | LED Lights, Electrical Products, Household Appliance |
---|---|---|---|
Condition: | New | Usage: | LED |
Width Adjustment Range: | 50~350 Mm | Transmission Height: | 920±20 Mm |
Speed: | Adjustable From 0.5 To 9 M/min | Control: | Industrial Control Panel |

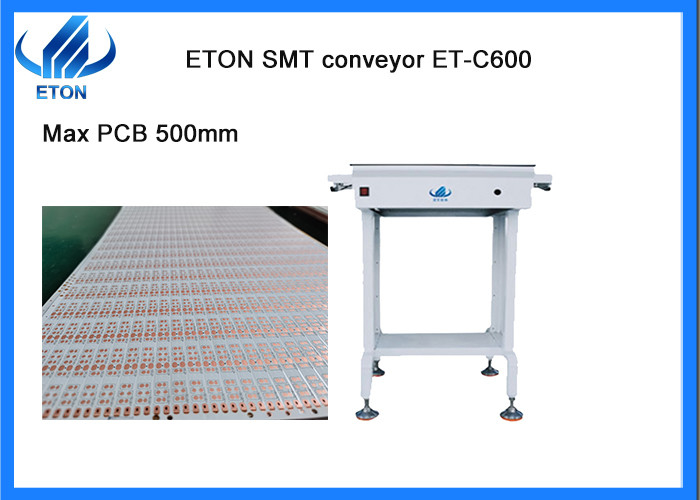

LED lighting electric board transfer SMT PCB Max 600mm conveyor
Description
SMT conveyor can link the SMT PCB loader machine and un-loader machine, conveyor is mainly using for SMT devices connection, manually check and assembly, and PCB buffer. The advantage of the conveyor is short which can store in any where if the space is small.
Specifications:
Model | ET-C600 |
Steel frame structure, rail length | L=600 mm |
Width adjustment range | 50~350 mm |
PCB size | 600*350 mm |
Transmission height | 920±20 |
Transmission | 5MM flat belt conveyor |
Speed | Adjustable from 0.5 to 9 m/min |
Motor | One set of 25 W stepper motor |
Control | Industrial control panel |
Transmission Direction | Single (left → right ) |
One section of control, two Sensors |
Our Exhibitions
Participate in various exhibitions at home and abroad every year (except during the epidemic period)
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Packages
As for the package of the machine, we put it in film packing and foam cotton, to prevent the dust and water of protecting the machine and keep dry of the machine during transportation, and equip with wooden boxes to transport to the specified port.
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine

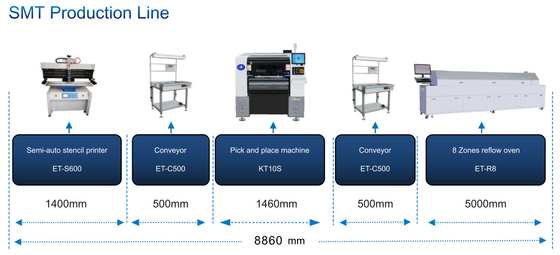

SMT Line solution
A whole semi automatic line which needs several devices for a whole semi production, as semi auto stencil printer machine, conveyor, pick and place machine and reflow oven etc.
