Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Condition: | 100% Original,Brand-new | Dispensing Speed: | 90000 CPH |
| Power: | 220AC 50HZ | Drive Way: | Magnetic Linear Motor |

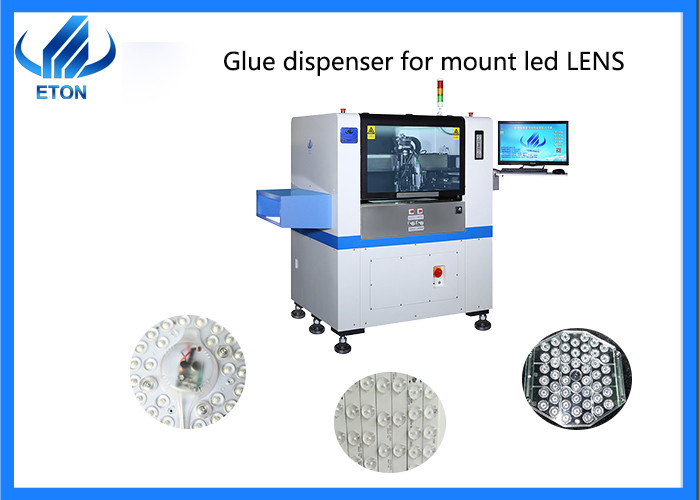

HT-D12-1200 Glue dispenser Machine 90000CPH with Magnetic Linear Motor Drive
* CCD positioning system, visual positioning compensation
* Large size track,suitable for different size of PCB
*Contactless high speed injection dispensing head, dispensing glue continously with high efficiency
*Intelligent dispensing head ensure good performance, high efficiency and lower glue wasting
Technical parameter
| Model | HT-D12-1200 |
| Dimension: 1800*1050*1550mm | |
| PCB | |
| Max PCB size | 1200*500mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Dispensing mode | Pneumatic injection value |
| Vision System | |
| No. of Camera | 1 set industrial camera |
| Dispensing accuracy | 0.1mm |
| Heating temperature | 200℃ |
| Dispensing height | <15mm |
| Dispensing speed | 90000CPH(The optimum speed) |
| Power | 220AC 50HZ |
| Power Consumption | 1.5kw |
| Operating Environment | 23℃±2℃ |
| Drive way | Magnetic linear motor drive |
| Max running Speed | 1200mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Way | Online drive |
| Gas consumption | 0.4-0.6mpa(4-6 kgf/cm2)150N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
In 2020, ETON Jiangxi Industrial Park was successfully completed, equipped with an advanced processing and manufacturing center, strict quality control, and standardize production, streamline production processes. ETON advanced technology and innovation drives the revolution of market rapidly, and obtains a number of intellectual property technologies, including 9 invention patens, 112 practical patents, 12 software copyrights, moreover, ETON has invented the fastest automatic pick and place machine with speed 170000 CPH, which save much labors and space of production, got large market share in USA, KOREA, INDIA, GERMANY, EGYPT, TURKEY, VIETNAM, TUNISIA, THAILAND more than 20 counties.
Service
Maintenance period 1 year
Software and hardware lifetime maintenance
Visit customers regularly and gather information
clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
On-site service
timely with our engineers.
operate the machine.
FAQ
Q: What service you can enjoy if you purchase LED SMT pick and place machine from us?
A: 1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organisation and working system, guarantee you a fast delivery!
4) Supply you all the SMT proecssing related machines and devices with best prices!
Q: Does your machines have quality certificate?
A: All of the machines have passed CE,SIRA and CCC certificate and have own patent.
Q: What are the main LED products our machines for?
A: There are different machines in our company and different machines apply to different LED lights. The main products we can apply:bulb tube strip lamp panel. Down light,streetlight,ceiling light.wall washer light and so on.
