Description of HT-F9 Pick and place machine

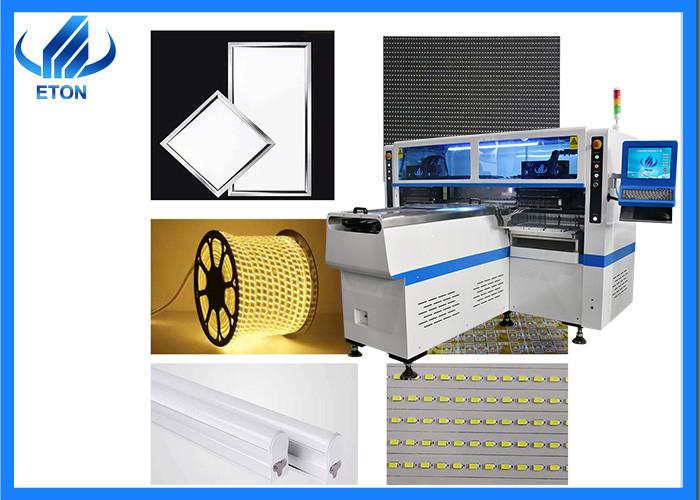

Dual arm magnetic linear LED high-speed pick and place machine, Producing 4 types materials at the same time, capacity reach 250000 CPH.

The SMT machine uses the suction nozzle on the head to absorb various components from feeders and mount them on the PCB board.

SMT pick and place machine is the main equipment in SMT production process, which can not be replaced by other equipment.

SMT production process is the solder paste coating, component mounting, reflow welding, it is the most major process in the SMT production process. In order to get good mounting quality, SMT pick and place machine should have good mounting process in addition to good equipment.

Machine main parameter

Machine main part

Three main components: software, electrical and mechanical.

Machine parts and functions

Mainframe: The brain of a machine that collects feedback signals and processes them before issuing instructions

Electric box: all the circuit of the machine is integrated in the electric box. After external power connection, it controls the running process of the machine together with the host machine

Circuit board: Controls various parts of the machine

Servo motor: after the servo motor is energized, it turns positive and negative, and drives the screw rod to rotate by connecting the screw rod with the coupling, thus driving (mounting head, transportation platform) to do linear reciprocating motion. A servo motor controls a screw.

Linear motor: magnetic linear motor, through external electric connection to make the actuator generate a magnetic field, stator itself is a permanent magnet, moving stator through the interaction between magnetic poles to make the mount head reciprocating motion.

Magnetic grid ruler: non-contact scanning magnetic field, and the analog measurement value into absolute or incremental output signal, high detection accuracy, fast response speed, to a certain extent determines the accuracy of head mounting.

Linear guide rail: used to support and guide the moving part (mounting head, transport platform), according to the specified direction to do high precision reciprocating movement

Stepper motor: the track width is adjusted by adjusting the motor to drive the belt connecting screw, so as to be suitable for the installation of different circuit boards of customers. The transport motor drives the belt, which drives the circuit board.
