Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Application: | LED Lights, Electrical Products, Household Appliance |
|---|---|---|---|
| Power Supply: | 380AC 50HZ | Condition: | New |
| Product Name: | Automatic SMT Pick And Place Machine | Weight: | 2500kg |
| Mounting Speed: | 90000 CPH | Dimension: | 3150*2900*1900mm |
| Feeders: | 48PCS | Pcb Thickness: | 0.5-5 Mm |
| High Light: | 1.2*0.5M PCB Board SMT Mounter,Middle Speed SMT Mounter,24PCS Heads SMT Mounter |
||

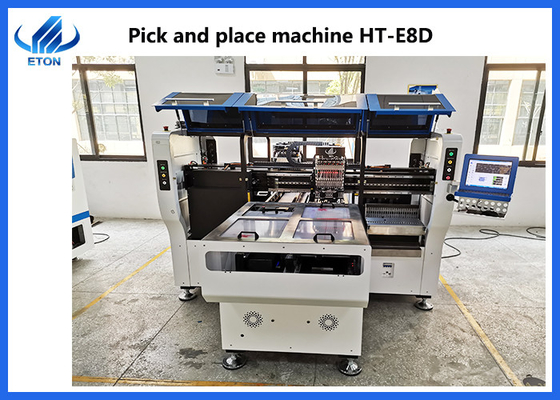

Middle high speed 24 PCS heads Max 1.2*0.5M PCB board SMT machine
Description
Exclusive patented technology
Technical parameter

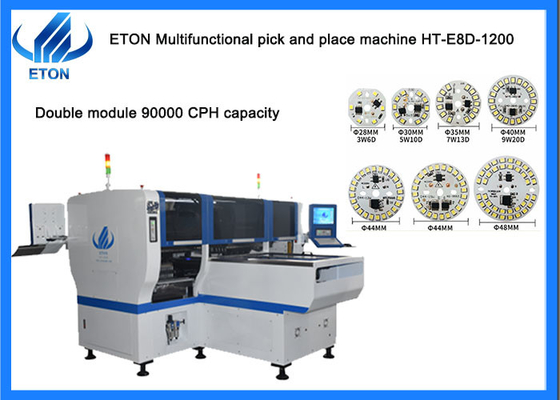

| Model | HT-E8D-1200 |
| Total Weight | 2500kg |
| PCB Length Width | Max:1200*300mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| Software | R&D independently |
| Mounting Speed | 90000 CPH(The optimum speed ) |
| Components | LED , capacitors, resistors, IC, shaped components, etc. |
| Components Space | 0.2mm |
| No. of Feeders Station | 48 PCS |
| No. of nozzles | 24 PCS |
| Power | 380AC 50HZ |
| Power Consumption | 8 KW |
| Operating Environment | 23℃±3℃ |
| Conveyor transmission | Max length :1200 mm |
| Transmission Speed | ＞1000mm/sec |
| X,Y,Z Axis Drive way | High-end magnetic linear motor + Servo motor |
| Feeding way | Electric feeder with double motor |
SMT Line solution
The SMT production line has two schemes: semi-automatic and fully automatic line. If you are just starting to do it, I suggest you do a semi-automatic production line, which can effectively save your cost.
Our advantage
ETON is the pioneer of SMT machine field in China which have more than 11 years experiences. And owned CCC, SIRA, CE certificates with 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies.
Market
ETON company which not only provide our high speed SMT machine in Chinese market, but also overseas market to let our customer enjoy one site service, efficient production and low consumption.
Here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
FAQ
Q. How was your services?
A. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.
Q. How can I contact you to buy the goods in an efficient way?
A. Making enquiry of the products you want on the trading platform of Alibaba, Tradelink, foreign trade Express, or contact us with the social software as Whatsapp, Skype, etc.
