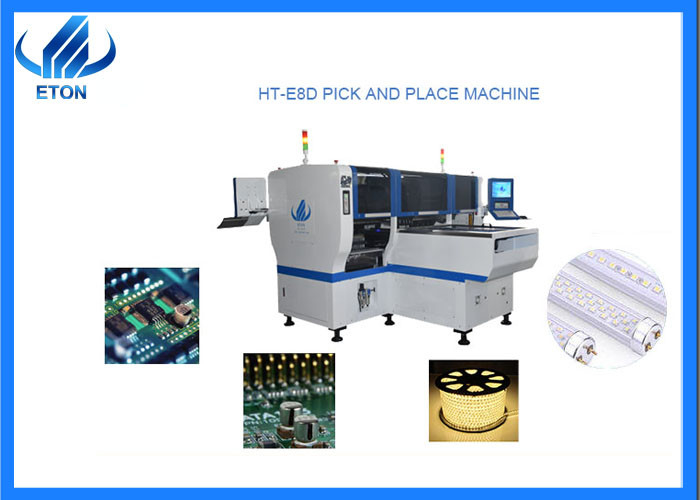

ETON SMT Mounting Machine with High Magnetic Linear Motor for PCB SMD pick and place machine
Technical parameter
| Model |
HT-E8D-1200 |
| Length |
3150mm |
| Width |
2250mm |
| Height |
1650mm |
| Total Weight |
2500kg |
| PCB Length Width |
Max:1200*300mm Min:100*100mm |
| No. of Camera |
4 sets of imported camera |
| Vision for the flight identification, MARK correction |
| Mounting Speed |
90000 CPH |
| No. of Feeders Station |
48 PCS |
| No. of nozzles |
24 PCS |
| Electrical control |
Independent research and development by ETON |
Machine description
E8D is Double modular double rail. E8D is 1200*300mm
4 sets camera:Vision for the flight identification, MARK correction
The application of E8D and E8S is the same, but E8D is dual-track, and the production capacity is twice that of E8S
E8S mounting LED bulb :Actual speed is 20000cph-22000cph.E8D is double
If you want to make various LED lights, you can choose E8S. If you want to have a higher capacity, you can choose E8D.
Application
This machine designed for many kinds of PCB boards. It has 24 nozzles and mounting speed reached 90000cph.Using newest high magnetic linear motor, so the speed and accuracy is better than normal multi-functional machines.It mainly suitable for LED tube,flexible strip light, lens, power drive and so on.
Company profile
Shenzhen ETON Automation Equipment Co., Ltd., has devoted itself to researching
SMT placement machine and its peripheral equipment for 14 years. The company
also has a branch in Jiangxi Province. The total area reaches 50,000 square meters
and has the largest industrial park.
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,etc.
FAQ
Q1: Can you support the whole SMT Series?
A1: Yes, we can provide the whole solution line if you want. We are professional on SMT field.
Q2: How to use the calculator?
A2: We will send our engineer to your factory to install the machine and train freely. Usually 3 to 5 days of training activity is
Enough.
Q3: Why choose us?
A3: Our company is the leading manufacturer of automatic high speed Pick and place machine.
Q4: How is the warranty?
A4: Standard warranty is one year, during the warranty period, any parts need to be repaired and replaced will be free of charge.
Q5: How is the decomposition rate of the machine?
A5: Our machine is very stable, the decomposition rate is less than 0.001.
Q6. Is your software interface in English?
A6: English interface and Chinese interface are both available.
Led strip light
LED strip light is mean mounting led chip on the copper wire lamp or the ribbon flexible circuit board(FPC).
Normally, there are 0.5m , 1m, 5m, 10m,25m strip light in the led lighting market.
LED Strip light machine
F7S is the high speed mounting machine for led strip light, panel light, tube light, etc. It is very good performance as fellow parameters show:
High speed: F7S with 34 heads and 68 feeders, the speed reach 150000-170000 CPH. Around 1300m-1500m per hour.
High precision: F7S mounting precision reach 0.02mm, support automatic feeding. Total 5 sets of imported camera, vision alignment and mark correction.
Multifunctional: Suitable for mounting LED chip 3014/3030/3528/5630/5730/4014/2835/resistor/etc
How to choose LED lighting making machine ?
For led lighting machine, there are different modules for different size of led lighting. ETON company for no wire led strip light, suggest super high speed and professional machine. For led bulb, we have multifunctional mounting machine. So for your lighting, we need to according to your lighting details give you best suggestions.
