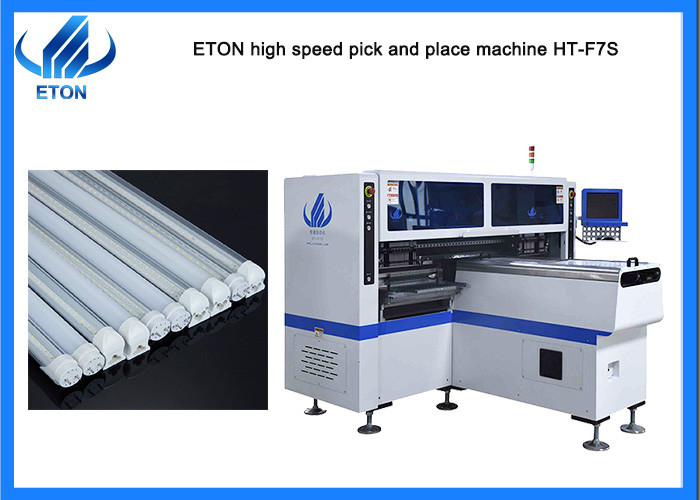

Dual module 34 PCS heads Max 1.2m tube SMT pick and place machine
Features
- High-end magnetic linear motor+ servo motor
- Apply to the 0.6 M, 0.9 M, 1.2 M rigid PCB and 0.5 M, 1 M LED flexible strip. Producing with 4 types of materials with high capacity. available for board with any proportion of LED chip and resistor.
- Two mounting modules, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
- Exclusive patent technology: Group to pick and group to mount.
IPC9850 Capacity: 150000-180000 CPH
Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0
Technical parameter
| Model |
HT-F7S |
| Total Weight |
1700kg |
| PCB |
| PCB Length Width |
Max:1200*330mm Min:100*100mm |
| PCB Thickness |
0.5-5mm |
| Mounting Precision |
±0.02mm |
| Mounting Height |
≦5mm |
| Mounting Speed |
150000~180000 CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Speed |
0.5mm |
| No. of Feeders Station |
68 PCS |
| No. of nozzles |
34 PCS |
| Power |
380AC 50 HZ |
| Power Consumption |
6kw |
| Transmission Speed |
Max Length :1200 mm |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor+ servo motor |
| Feeding way |
Electric feeder with double motor |

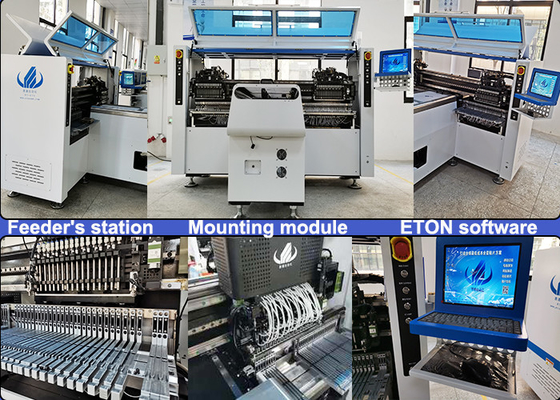

Machine main part
Machine application
Application: apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip. And also suitable for mounting tube, panel light ,bulb etc.
PCB size: Max:1200*330mm;Min:100*100mm.
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Related machine

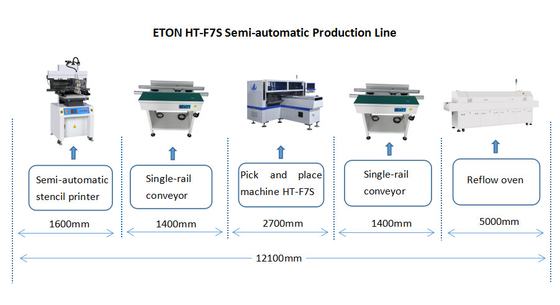

We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
FAQ
Q.Can I pay by L/C.
A.The procedure of L/C payment is complicated, which will waste a lot of time on payment. For more, you need to wait longer to get the machine, which will delay your production plan and delay the opportunity.
Q. Can I go and see if you have sold the equipment to India?
A. Yes, we have sold our machine in India, but for the fact we can't decide it for my customer, but I will try to contact my customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.
Q. How many hours does the machine can operate per day?
A.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
