Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | 100% Original,Brand-new |
| Product Name: | ETON SMT Pick And Place Machine | Weight: | 1700KG |
| Mounting Speed: | 180000 CPH | Feeders: | 68pcs |
| High Light: | SMT Mounter For LED 3014,SMT Mounter For LED 3020,Dual Arm PCB Assembly Machine |
||

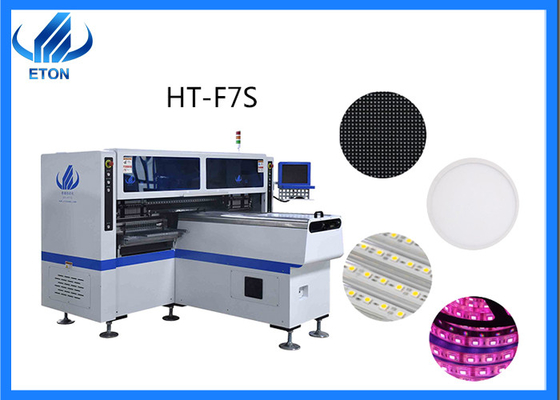

Professional SMT Mounter for LED 3014/3020/3528/5050 Dual-arm 180000cph PCB assembly machine
Machine Features
(1) Dual-arm professional high-speed pick and place machine.
(2) Producing with 2~4 types of materials with high capacity, available for 5m,50m or any length of flexible strip and roll to roll.
(3) Vision alignment, Mark correction.
(4) Components: LED 3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers, etc.
Machine Technical parameter
| Model | HT-F7S |
| Dimension(L*W*H) | 2700*2300*1550mm |
| Weight | 1700kg |
| PCB length width | Max:1200*330mm;Min:100*100mm |
| PCB thickness | 0.5~5mm |
| Mounting precision | ±0.02mm |
| Mounting mode | Group to pick and group to mount |
| Mounting height | ≤5mm |
| Mounting speed | 150000~180000CPH |
| Components | LED 3014/3020/3528/5050,resistor,capacitor, |
| No. Of feeders station | 68PCS |
| No. Of head | 34 PCS |
| High capacity | Apply to the 0.6m, 0.9m,1.2m rigid PCB and 0.5m,1m LED hard light board and LED flexible strip. producing with 2~4 types of materials with high capacity ,available for board with any proportion of LED chip and resistors. |
| High precision | Two mounting modules ,17 nozzles for each mounting part, part A or B can be mounted separately or synchronously. |
| Exclusive | Exclusive patent technology :group to take and group to mount. |
Company profile
Shenzhen ETON Automation Equipment Co., Ltd. has been committed to the development and manufacture of placement machine equipment, insisting on the concept of "serving customers" and establishing the market trend.
ETON mission: professionalism, excellent technology, sharing results.
ETON goal: to create a national brand and build an international Chinese enterprise.
ETON purpose: to create value for customers and create benefits for the society.
ETON vision: determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.
Packaging
Packaging: standard is plastic film wrap the LED SMT machine, then load into one 20" container; Wooden box packing can be customized.
Delivery: 35-40 days after 30% T/T prepayment, buyer should come to inspect when we do test running, after testing, pay the 70% balance before delivery
After-sales services
* Pre-sale
Provide equipment and SMT production lines that meet customers' needs according to customer needs;
Provide relevant suggestions to customers;
* On sale
Real-time follow-up of the production situation of the customer's machine and inform the customer of the production progress
* After sale
1. Arrange engineers to come to the factory to install, debug and teach free of charge;
2. One-year maintenance period. During the maintenance period, any parts that need to be replaced or repaired are free of charge;
3. Every year there is an opportunity for free machine maintenance
4. Visit customers regularly to understand the usage of the machine and collect customer feedback.
FAQ
Q: What kind of machine will provide besides pick and place machine ?
A: ETON as the largest manufacturer of SMT machine in China, we provide whole SMT line, such as reflow oven, printer, conveyor, pick and place machine, Loader, Unloader, etc.
Q:What are your advantages?
A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Q: Do you have oversea after sale service?
A: We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support.Abroad, we have India office, Indian engineer, Egyptian office and Egyptian engineer , etc.
Q: How is the training?
A: After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we will train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers can't make it through, we also have special one-on-one online training and video tutorials.
