Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Applicable Components: | 0402 |
---|---|---|---|
Name: | SMT Pick And Place Machine | Condition: | 100% Original,Brand-new |
Product Name: | ETON SMT Pick And Place Machine | Weight: | 1700KG |
Mounting Speed: | 180000 CPH | Feeders: | 68pcs |
High Light: | 0.5m Strip SMT Mounter,5 camera vision alignment SMT Mounter,1m Strip SMT Mounter |

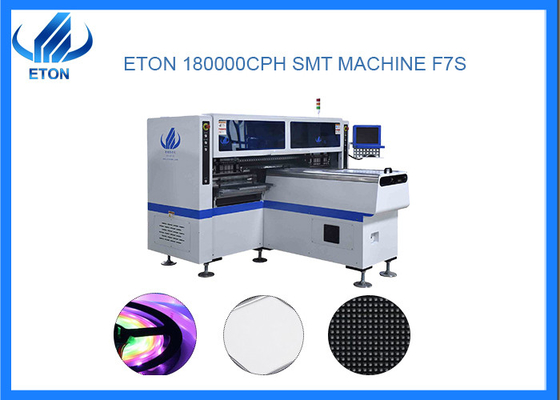

High Speed SMT Mounter 5 camera vision alignment 0.5/1m strip/tube making pick and place machine
Machine Features
(1) Dual-arm professional high-speed pick and place machine.
(2) Producing with 2~4 types of materials with high capacity, available for 5m,50m or any length of flexible strip and roll to roll.
(3) Vision alignment, Mark correction.
(4) Components: LED 3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers, etc.
Technical Parameter | |
Total weight: | 1700kg |
Dimension | 2700*2300*1550mm |
PCB length width | 100*100mm—1200*330mm |
PCB thickness | 0.5-5mm |
PCB clamping | Adjustable pressure pneumatic |
Mounting mode | Group to pick and group to place |
No. Of camera | 5 sets camera (digital camera) |
Mounting height | ≤5mm |
Power consumption | 6KW |
X,Y,Z Axis drive way | High-end magnetic linear motor and servo motor |
Feeding system | |
No. Of feeders station | 68 PCS |
No. Of head | 34PCS |
Feeding way | Electric feeder with double motor |
The parts
1.Double mounting heads ,each head has 17 nozzles
2.68 feeders station, can produce 2 - 4 types materials at same time, available for LED 3014 / 3020 / 3528 / 5050 and resistors, capacitors, bridge rectifiers etc.
3.Software is researched and developed independently by ETON company, it is also very easy to operate.
4.The guiding rail is used to support and guide the conveying platform to do high precision reciprocating movement in the specified direction.
Company profile
(1)Shenzhen ETON automation equipment CO.,Ltd. was founded in 2011 and Jiangxi Intelligent industrial Park was used in 2020. So far, ETON has more than 11 years experience.
(2)ETON is the leading manufacturer of global photoelectric high speed pick and place machine and enjoys a good reputation around the world.
(3)The produces have exported more than 30 countries and regions, including Egypt, India,Turkey, Russia, Brazil, South Africa and so on.
(4)ETON has five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
(5)ETON also keep “no worries” after-sales service, and the products are supported to personal customization, specialist sale always track the production and transportation of equipment.
ETON Advantages
Efficient team: The best suggestions of full SMT lineequipment according to your budget and site.
Competitive price: We are directly manufacture of theETON pick and place machine, so we can give you thebest competitive price with high quality materials.
High quality: We have strictly quality control during allproduction from raw materials to the finished machine.
High efficiency: Allmachines parts are made byourselves, so it" s convenient to control the timeschedule and quality timely.
Packaging
Packaging: standard is plastic film wrap the LED SMT machine, then load into one 20" container; Wooden box packing can be customized.
Delivery: 35-40 days after 30% T/T prepayment, buyer should come to inspect when we do test running, after testing, pay the 70% balance before delivery
After-sales services
* Pre-sale
Provide equipment and SMT production lines that meet customers' needs according to customer needs;
Provide relevant suggestions to customers;
* On sale
Real-time follow-up of the production situation of the customer's machine and inform the customer of the production progress
* After sale
1. Arrange engineers to come to the factory to install, debug and teach free of charge;
2. One-year maintenance period. During the maintenance period, any parts that need to be replaced or repaired are free of charge;
3. Every year there is an opportunity for free machine maintenance
4. Visit customers regularly to understand the usage of the machine and collect customer feedback.
FAQ
Q1: Why are your products more expensive than others?
A:We am more expensive than others because we use imported brand parts to ensure the quality. I think we should see the longer-term value brought by our products, such as the market occupied by the increase of output.
Q2:Is there any difference between your multi-function machine and your special machine?
A: The multi-function machine can mount a variety of products, and the special machine is best to mount lamp tubes and strips. The biggest difference belongs to the difference of function and production capacity.
