Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | 100% Original,Brand-new |
| Product Name: | ETON SMT Pick And Place Machine | Weight: | 1700KG |
| Mounting Speed: | 180000 CPH | Feeders: | 68pcs |
| High Light: | LED batten SMT Mounter,LED batten making SMT Mounter,LED batten Pick Place Machine |
||

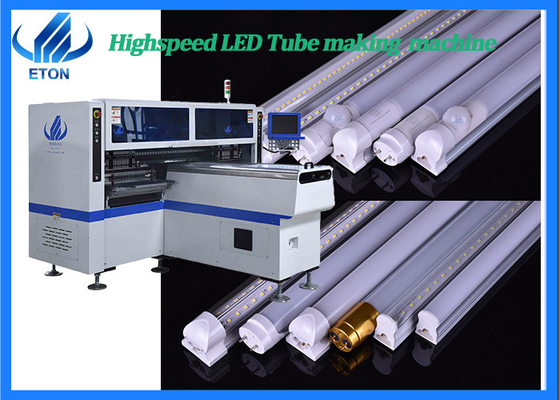

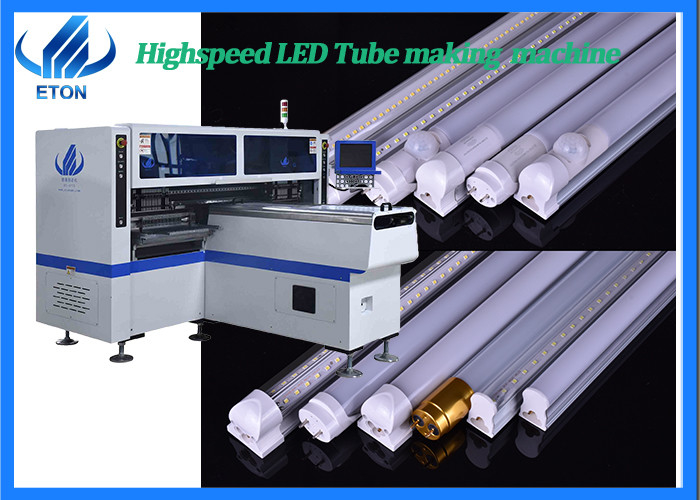

LED batten making SMT Mounter 180000CPH blue and white pick and place machine
Machine Parameter
| Technical Parameter | |
| Total weight: | 1700kg |
| Dimension | 2700*2300*1550mm |
| PCB length width | 100*100mm—1200*330mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group to pick and group to place |
| No. Of camera | 5 sets camera (digital camera) |
| Mounting height | ≤5mm |
| Power consumption | 6KW |
| X,Y,Z Axis drive way | High-end magnetic linear motor and servo motor |
| Feeding system | |
| No. Of feeders station | 68 PCS |
| No. Of head | 34PCS |
| Feeding way | Electric feeder with double motor |
LED Tube light production craft Introduction
Solder paste printer machine: The solder paste is Stencil printed on the PCB board through the Stencil of the printer.
Pick and place machine: Mount the electronic component at the specified position on the PCB.Reflow oven: Melt the solder paste and fix it to the mounting element.
Single conveyor: Inspect the quality of assembly and welding to cushion the production line.
The parts
1.Double mounting heads ,each head has 17 nozzles
2.68 feeders station, can produce 2 - 4 types materials at same time, available for LED 3014 / 3020 / 3528 / 5050 and resistors, capacitors, bridge rectifiers etc.
3.Software is researched and developed independently by ETON company, it is also very easy to operate.
4.The guiding rail is used to support and guide the conveying platform to do high precision reciprocating movement in the specified direction.
The features of ETON LED chip mounter
1. ETON is long history and good experience at led chip mounter machine, especially the high speed mounter and super high speed mounter. We got more than 90% big led factory market in China. Many big Chinese brand are our clients, such as the Yankon, MLS, Foshan Lighting, NVC, etc.
2. ETON Machine is cheaper compared with same capacity. We have different speed module, like the 40000 cph, 80000 cph, 180000 cph, 250000 cph and 500000cph. With more choose if you cooperation with us.
3.ETON machine is multifunctional and intelligent. Suitable for all kinds of led chip and electrical components, such as the IC, Resistor, Capacitor, Terminal , Shaped components, etc
4. ETON machine could be customized according to your product design with strong R&D power.
Packaging
Packaging: standard is plastic film wrap the LED SMT machine, then load into one 20" container; Wooden box packing can be customized.
Delivery: 35-40 days after 30% T/T prepayment, buyer should come to inspect when we do test running, after testing, pay the 70% balance before delivery
Service
※ Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
※ Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
※ Visit customers regularly and gather information
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
※ Provide latest information about technology and equipment
We give professional technology suggestion with our clients.And share the updates news to our clients
FAQ
Q: What is your machines quality?
A: We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machine quality.
Q: What is your delivery date?
A: The delivery date is about 20 days upon the full payment.
Q: The products you are advertising are in stock?
A: The delivery date is about 30 days upon the full payment.Some times we have some in stock for ship , before shipping we’ll do some machine test for clients .
Q: How many hours does the machine can operated per day?
A: Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
Panel light introduction
LED panel lamp is a high-end indoor lighting lamp. Its outer frame is made of aluminum alloy by anodizing. The light source is led. The whole lamp design is beautiful, simple, atmospheric and luxurious. It not only has good lighting effect, but also can bring people a beautiful feeling. The LED panel lamp has a unique design. The light passes through the light guide plate with high transmittance to form a uniform plane luminous effect. The illumination uniformity is good, the light is soft, comfortable and bright, which can effectively alleviate eye fatigue. LED panel light can also prevent radiation and will not stimulate the skin of pregnant women, the elderly and children.
