Product Details:
Payment & Shipping Terms:
|
| PCB Size: | 250(±10)mm*any Length | PCB Thickness: | 0.1-0.5mm |
|---|---|---|---|
| PCB Clamping: | Vacuum Adsorption,cylinder Clamping,track Width Adjustable | Mounting Way: | Group Picking And Group Placing |
| Mounting Mode: | Double Rail+Four Groups Of Placement Heads | Mounting Speed: | 500000CPH |
| No.of Heads: | 136 PCS | No.of Camera: | 10 Sets |
| Components Range: | LED 3014/3020/2835/5050 | Feeding Way: | Intelligent Electric Feeder With Double Motor |
| No.of Feeder Station: | 136 PCS | ||
| High Light: | 500000 CPH SMT Pick Place Machine,136 Heads SMT Pick Place Machine,SMT Pick Place Machine For Strip |
||

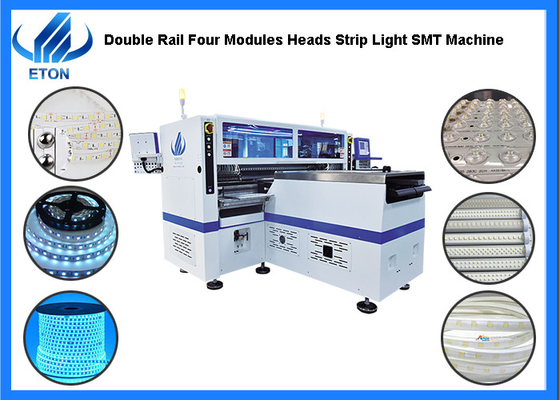

Automatic 500000 CPH LED Flexible strip SMT mounter

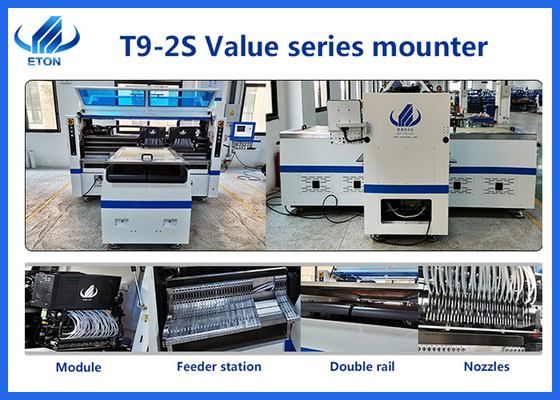

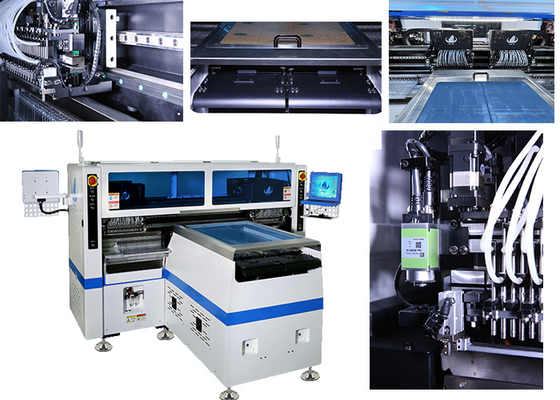

Features of 136 head 500000CPH SMT mounter
●Flight recognition camera,no pause to detect the presence or absence of components,component adsorption state,prevent placement errors
●Automatic production with identification data,correction and fill missing component automatically.
●The clamping rod is driven by the air cylinder to correct the materials taken by mounting head.
●With the function of flling missing component automatically, realize Industry 4.0 Unmanned Workshop.
●Compliant with CE standards.
| PCB size | 250(±10)mm*any length |
| PCB thickness | 0.1-0.5mm |
| Mounting mode | Double rail+ Four groups of placement heads |
| Mounting way | Group picking and group placing |
| Mounting speed | 500000CPH |
| X,Y,Z axis drive way | High-end magnetic linear motor+servo motor |
| No.of head | Double side: 136PCS |
| Feeding way | Intelligent electric feeder with double motor |

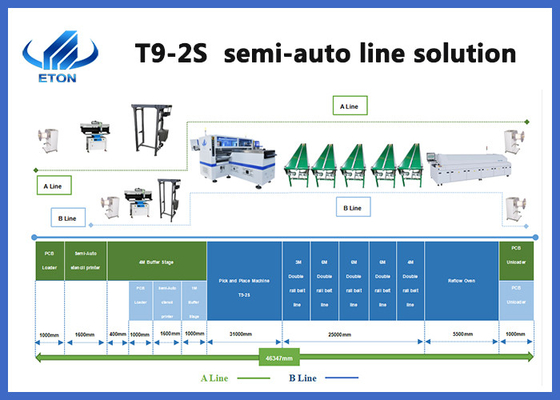

The Production Line
Company Introduction
1.10 years development history.
2.Independent R&D Exclusive Patented technology.
3.80% large and listed LED factory are our client.
4.Top 1 in high-speed pick and place machine in China.
5.We can provide you with the whole production line.
6.Our software is R&D independently.We can offer software upgrade for lifetime for free
7.We have 50,000 square meters of industrial park. The production strength is abundant, occupies the first place in the domestic profession.
Service
Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt. Turkey that can provide service timely with our engineers.
According to your needs. dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
FAQ
Q: Does your machines have quality certificates?
A: We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, and have rich experience(more than 10 years) in LED light production line program.
Q: What’s the terms of payment? What about the trade term?
A: T/T is OK. You can choose FOB Shenzhen.
Q: What’s your delivery time?
A: Usually 30 days after deposit, if we have inventory, the time can be brought forward.
Q: Is there any quality guarantee?
A: We stick to quality first, client-oriented, Continuous improvement!
Q: Is your software interface in English?
A: English interface and Chinese interface are both available.
