Product Details:
Payment & Shipping Terms:
|
| Dimension: | 2788*1686*1375mm | Weight: | 1700kg |
|---|---|---|---|
| PCB Size: | Max Size:500*450mm(single PCB) 500*300mm(double PCB) Min Size:50*50mm | PCB Thickness: | 0.5-4.5mm |
| Mounting Height: | ≤20mm | Mounting Precision: | ±0.02mm |
| No.of Camera: | 4 PCS | Components: | 0201~40*40mm Tape Reel Packages And IC Tray Feeder Etc. |
| Mounting Speed: | 80000CPH | No. Of Feeders Station: | Double Side:32PCS Single Side:16PCS |
| No. Of Head: | Double Side：20pcs(single Side:10pcs) | Feeding Way: | Intelligent Double Head Feeder |
| High Light: | Pick Place Machine for 0201 Components,Dual Mounting Head SMT machine,Ultra High Precision SMT machine |
||

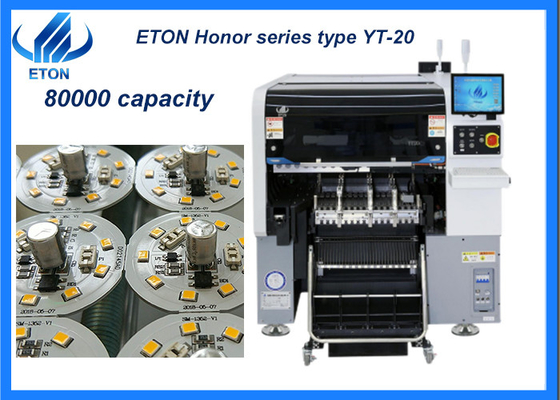

Dual arm Dual Mounting Head Ultra-High Precision can mount 0201 components SMT Pick And Place Machine
YT-202S is the latest placement machine. Suitable for mounting high-precision products,
the smallest components can be mounted 0201~40*40mm tape reel package and IC tray feeder
Technical Parameter
| Dimension | 2788*1686*1375mm |
| Total wight | 1700kg |
| PCB length width |
Max size:500mm*450mm(single PCB) 500mm*300mm(double PCB) Min size: 50mm*50mm |
| PCB thickness | 0.5~4.5mm |
| Repeat precisio | 土0.02mm |
| Mounting height | <=6mm |
| NO.of camera | 4PCS |
| Mounting speed | 80000CPH |
| NO.of head | 20PCS |
| NO.of feeders station | 32PCH |

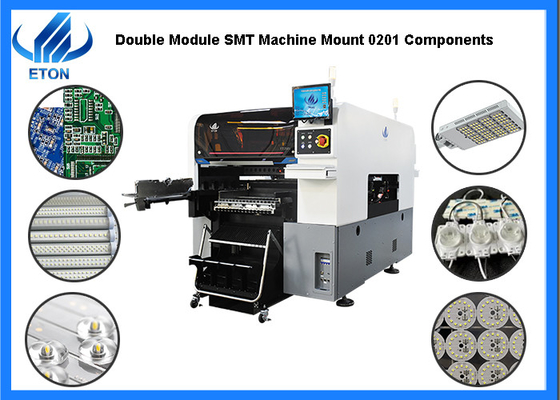

Application products
It an mount high-precision products, such as displays, drivers, circuit boards etc.

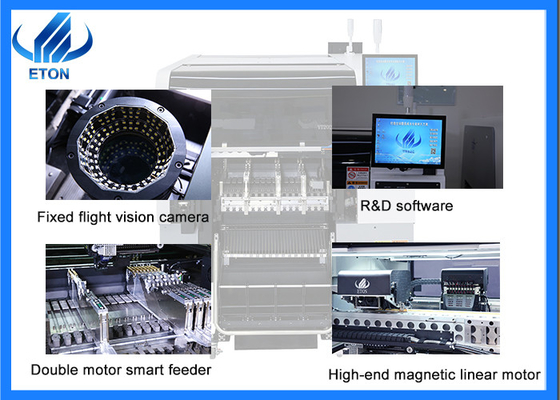

20 nozzle has an independent detection function to improve the stability and reliability of the
equipment.
Components with size less than 40 * 40mm or height less than 20mm can be used to high-speed and high-precision identification.
Both high speed and versatility, to achieve super practicability in the same class of products.
Company profile
Shenzhen ETON Automation Equipment Co., Ltd., founded in 2011, is a provider focusing on the R&D, production and sales of SMT high-speed mounter and SMT peripheral automation equipment, as well as the manufacturing and process scheme of garment production. The company has SMT high-speed Mounter business unit, precision solder paste printing equipment business unit, high-speed precision dispensing defense business unit and SMT peripheral automatic makeup equipment business unit.
Services
1.Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free
2.Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates
3.Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time
4.Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
5.On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt. Turkey that can provide service timely with our engineers.
According to your needs. dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
FAQ
1:Are you a factory or trading company?
A:We are a professional manufacturer of mounter.And we have our own brand mounter production line.
2:Do you provide installation service?
A:We have engineer in India, Turkey, Egyp.
3:What is your delivery date?
The delivery date is about 20 days upon the full payment.
4:Does the price include nozzles and feeders?
A:We don't include nozzles and feeders,because each customer requires different nozzles and feeders.
5:Does your company only buy Mounter?

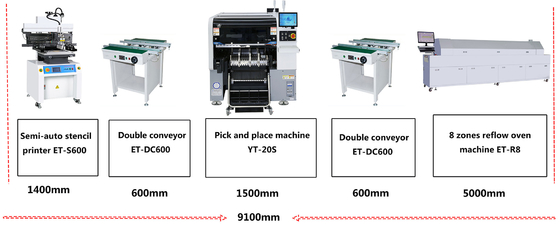

A;We also provide Send board machine ,pcb un-loader, convery, semi-automatic stencil printe and automatic
stencil printe.
