Display LED Chip Mounter Min 0402 SMT Pick And Place Machine

Display LED Chip Mounter Min 0402 SMT Pick And Place Machine
Display LED Chip Mounter Min 0402 SMT Pick And Place Machine

Large Image :  Display LED Chip Mounter Min 0402 SMT Pick And Place Machine

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA
Model Number: HT-E8S-600
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Applicable Components: 0402
Name: SMT Automatic Pick And Place Machine Application: LED Lights, Electrical Products, Household Appliance
Power Supply: 380AC 50HZ Weight: 1500kg
Mounting Speed: 45000 CPH Dimension: 2550*1650*1550mm
Highlight:

Display LED chip Mounter

,

Min 0402 Pick And Place Machine

,

LED Chip Mounter for Min 0402

0.5m LED flexible strip lighting SMT pick and place machine



Description

  • Single module magnetic linear motor multifunctional pick and place machine
  • Mounting components: LED chips/capacitors/resistors/lens/IC/Shaped Components, etc.
  • Component: Min. size 0402 Max. height 15mm
  • Application: Power driver. electric board. lens. linear Bulb. DOB, household appliance etc.

Exclusive patented technology

  • Electronic feeder feeding system.
  • Vision alignment flight identifications, Mark correction.
  • Non-stop material re-loading function
  • Auto-optimization after coordinates generated, etc.



Technical parameter

Model HT-E8S-600
Dimension
Length 2550 mm
Width 1650 mm
Height 1550 mm
Total Weight 1500 kg
PCB
PCB Length Width Max:600*500mm Min:100*100mm
PCB Thickness 0.5-5mm
PCB Clamping Adjustable pressure pneumatic
Mounting Mode Group picking and separate placingseparate picking and separate placing
O.S.
System Windows7
Software R&D independently
Display Touch screen monitor
Input Device Keyboard, Mouse
Vision System
No. of Camera 2 sets of imported camera
Vision for the flight identification, MARK correction
Mounting Precision ±0.04mm
Mounting Height <15mm (Automatic Changing)
Mounting Speed 45000 CPH(The optimum speed)
Components LED , capacitors, resistors, IC ,Shaped components, etc.
Components Space 0.2mm
No. of Feeders Station 28 PCS
No. of nozzles 12 PCS
Power 380AC 50HZ
Power Consumption 4 KW
Operating Environment 23℃±3℃
Conveyor transmission Max length :1200 mm
Transmission Speed ＞1000mm/sec
Transmission Direction Both direction (option)
Transmission Mode Auto online drive
Air supply 0.4-0.6mpa (4-6kgf/cm2)150N/min
Electrical control Independent research and development by ETON
X,Y,Z Axis Drive way High-end magnetic linear motor + Servo motor
Feeding way Electric feeder with double motor

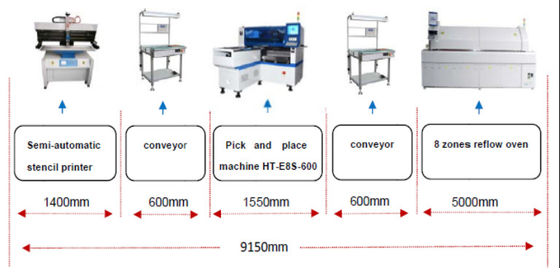

SMT Line solution

The SMT production line has two schemes: semi-automatic and fully automatic line. If you are just starting to do it, I suggest you do a semi-automatic production line, which can effectively save your cost.

Display LED Chip Mounter Min 0402 SMT Pick And Place Machine 0

Market

Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:

SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.

Display LED Chip Mounter Min 0402 SMT Pick And Place Machine 1

Shipping and Delivery

Land transportation: suitable for inland countries and it is affordable;

Air freight: for urgent good, and it is the most expensive transportation way;

Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.

Display LED Chip Mounter Min 0402 SMT Pick And Place Machine 2
