DOB bulb, panel light High end magnatic linear motor SMT multi-functional placement machine
Features

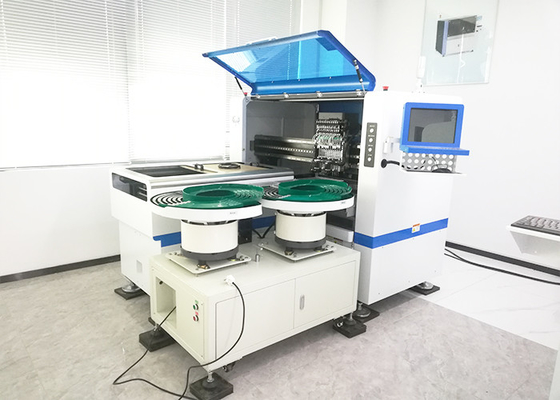

- Single module magnetic linear motor multifunctional pick and place machine

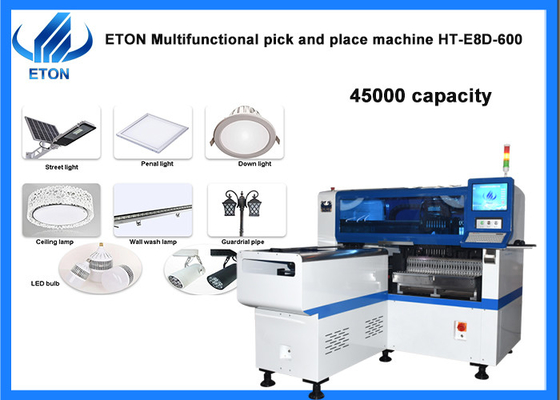

- Mounting components: LED chips/capacitors/resistors/lens/IC/Shaped Components, etc.
- Component: Min. size 0402 Max. height 15mm
- Application: Power driver. electric board. lens. linear Bulb. DOB, household appliance etc.
Exclusive patented technology
- Electronic feeder feeding system.
- Vision alignment flight identifications, Mark correction.
- Non-stop material re-loading function
- Auto-optimization after coordinates generated, etc.
Technical parameter
| Model |
HT-E8S-600 |
| Dimension |
| Length |
2550 mm |
| Width |
1650 mm |
| Height |
1550 mm |
| Total Weight |
1500 kg |
| PCB |
| PCB Length Width |
Max:600*500mm Min:100*100mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Mounting Mode |
Group picking and separate placingseparate picking and separate placing |
| O.S. |
| System |
Windows7 |
| Software |
R&D independently |
| Display |
Touch screen monitor |
| Input Device |
Keyboard, Mouse |
| Vision System |
| No. of Camera |
2 sets of imported camera |
| Vision for the flight identification, MARK correction |
| Mounting Precision |
±0.04mm |
| Mounting Height |
<15mm (Automatic Changing) |
| Mounting Speed |
45000 CPH(The optimum speed) |
| Components |
LED , capacitors, resistors, IC ,Shaped components, etc. |
| Components Space |
0.2mm |
| No. of Feeders Station |
28 PCS |
| No. of nozzles |
12 PCS |
| Power |
380AC 50HZ |
| Power Consumption |
4 KW |
| Operating Environment |
23℃±3℃ |
| Conveyor transmission |
Max length :1200 mm |
| Transmission Speed |
＞1000mm/sec |
| Transmission Direction |
Both direction (option) |
| Transmission Mode |
Auto online drive |
| Air supply |
0.4-0.6mpa (4-6kgf/cm2)150N/min |
| Electrical control |
Independent research and development by ETON |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor + Servo motor |
| Feeding way |
Electric feeder with double motor |
Machine application
Our Exhibitions
Participate in various exhibitions at home and abroad every year (except during the epidemic period)
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.
Service
Pre-sale

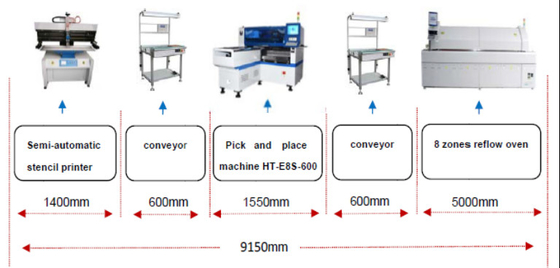

1)Provide equipment, such as pick and place machine, stencil printer, reflow oven, conveyor,etc
2)SMT whole line solution, based on customer’s factory layout, requirement, product, etc.
On-sale
1)Real-time follow-up of the production situation of the customer’s machine.
2)Inform the customer of the production progress with video or photos.
After-sale
1)On-site Free installation.
2)One-year Warranty factory service.
3)Two regular visits customer one year.
4)Free technical training
Technical support
1)Free technical training of operating and maintenance.
2)7*24 hours technical online support.
3)Local engineer in India(Delhi, Mumbai and Daman), Turkey, Egypt.
