Product Details:
Payment & Shipping Terms:
|
| Application: | LED Lights, Electrical Products, Household Appliance | Power Supply: | 380AC 50HZ |
|---|---|---|---|
| Condition: | New | Warranty: | 1 Year |
| Applicable Components: | 0402 | Feeders: | 28PCS |
| Positioning Accuracy: | 0.04mm | Dimension: | 2550*1650*1550mm |
| High Light: | 12 Nozzles PCB Mounting Machine,Max 600mm PCB Mounting Machine,PCB SMT Placement Machine CE |
||

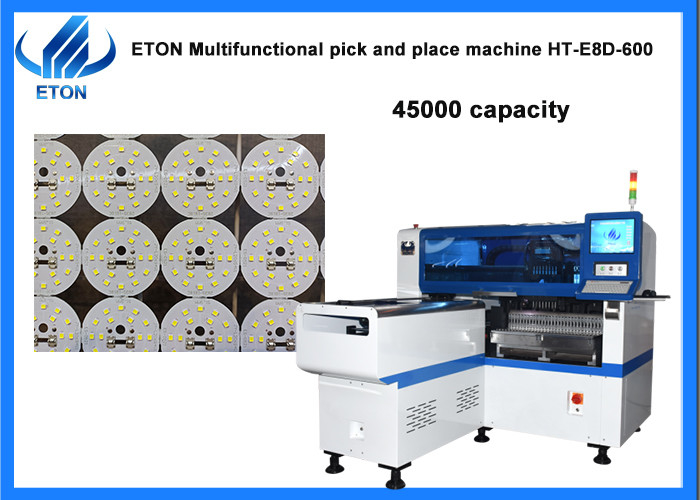

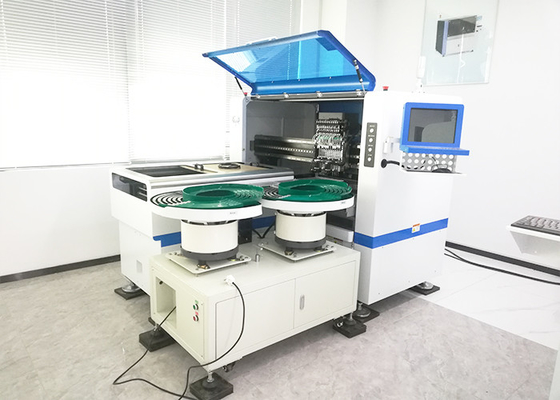

12 nozzles one module Max 600mm PCB mounting smt placement machine
Features
Exclusive patented technology
Technical parameter
| Model | HT-E8S-600 |
| Dimension | |
| Length | 2550 mm |
| Width | 1650 mm |
| Height | 1550 mm |
| Total Weight | 1500 kg |
| PCB | |
| PCB Length Width | Max:600*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera | 2 sets of imported camera |
| Vision for the flight identification, MARK correction | |
| Mounting Precision | ±0.04mm |
| Mounting Height | <15mm (Automatic Changing) |
| Mounting Speed | 45000 CPH(The optimum speed) |
| Components | LED , capacitors, resistors, IC ,Shaped components, etc. |
| Components Space | 0.2mm |
| No. of Feeders Station | 28 PCS |
| No. of nozzles | 12 PCS |
| Power | 380AC 50HZ |
| Power Consumption | 4 KW |
| Operating Environment | 23℃±3℃ |
| Conveyor transmission | Max length :1200 mm |
| Transmission Speed | ＞1000mm/sec |
| Transmission Direction | Both direction (option) |
| Transmission Mode | Auto online drive |
| Air supply | 0.4-0.6mpa (4-6kgf/cm2)150N/min |
| Electrical control | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor + Servo motor |
| Feeding way | Electric feeder with double motor |

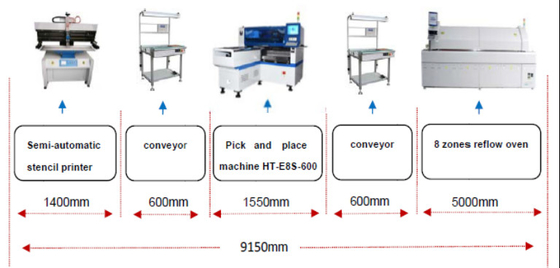

SMT Line solution
A whole semi automatic line which needs several devices for a whole semi production, as semi auto stencil printer machine, conveyor, pick and place machine and reflow oven etc.
Our advantage
e can provide SMT line solution for you!
Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc
1.Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.
2.Provide Overseas engineers for Free installation and free training.
3.TOP brand of China SMT machine manufacturer,500 employees for ETON
Market
ETON company which not only provide our high speed SMT machine in Chinese market, but also overseas market to let our customer enjoy one site service, efficient production and low consumption. As for the 11 years trade with more than 30 countries with our SMT high speed pick and place machine, we have come into business with many partners:
