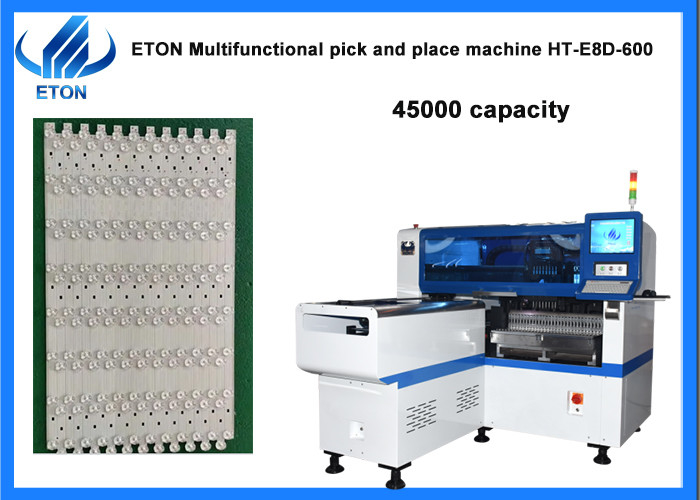

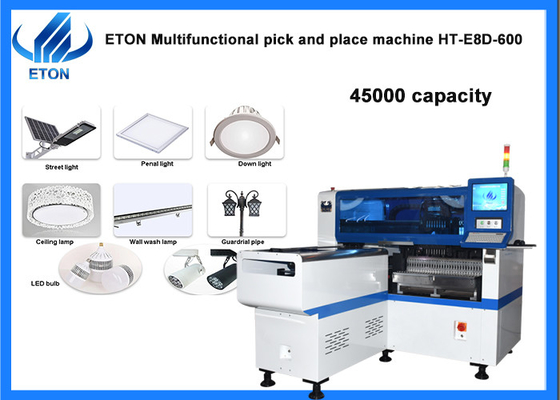

Middle Speed 45000 CPH LED Lighting Making SMT Machine with 28PCS Feeders

Middle Speed 45000 CPH LED Lighting Making SMT Machine with 28PCS Feeders
Middle Speed 45000 CPH LED Lighting Making SMT Machine with 28PCS Feeders

Large Image :  Middle Speed 45000 CPH LED Lighting Making SMT Machine with 28PCS Feeders

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA
Model Number: HT-E8S-600
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Product Name: Automatic SMT Pick And Place Machine
Weight: 1500kg Mounting Speed: 45000 CPH
Dimension: 2550*1650*1550mm Feeders: 28PCS
Pcb Thickness: 0.5-5 Mm Positioning Accuracy: 0.02mm
Highlight:

LED Lighting Making SMT Machine

,

Middle Speed SMT Machine

,

45000 CPH LED Lighting Making Machine

Middle speed 45000 CPH LED lighting making SMT machine



Features

  • Single module magnetic linear motor multifunctional pick and place machine
  • Mounting components: LED chips/capacitors/resistors/lens/IC/Shaped Components, etc.
  • Component: Min. size 0402 Max. height 15mm
  • Application: Power driver. electric board. lens. linear Bulb. DOB, household appliance etc.

Exclusive patented technology

  • Electronic feeder feeding system.
  • Vision alignment flight identifications, Mark correction.
  • Non-stop material re-loading function
  • Auto-optimization after coordinates generated, etc.

Technical parameter

Model HT-E8S-600
Dimension
Length 2550 mm
Width 1650 mm
Height 1550 mm
Total Weight 1500 kg
PCB
PCB Length Width Max:600*500mm Min:100*100mm
PCB Thickness 0.5-5mm
PCB Clamping Adjustable pressure pneumatic
Mounting Mode Group picking and separate placingseparate picking and separate placing
O.S.
System Windows7
Software R&D independently
Display Touch screen monitor
Input Device Keyboard, Mouse
Vision System
No. of Camera 2 sets of imported camera
Vision for the flight identification, MARK correction
Mounting Precision ±0.04mm
Mounting Height <15mm (Automatic Changing)
Mounting Speed 45000 CPH(The optimum speed)
Components LED , capacitors, resistors, IC ,Shaped components, etc.
Components Space 0.2mm
No. of Feeders Station 28 PCS
No. of nozzles 12 PCS
Power 380AC 50HZ
Power Consumption 4 KW
Operating Environment 23℃±3℃
Conveyor transmission Max length :1200 mm
Transmission Speed ＞1000mm/sec
Transmission Direction Both direction (option)
Transmission Mode Auto online drive
Air supply 0.4-0.6mpa (4-6kgf/cm2)150N/min
Electrical control Independent research and development by ETON
X,Y,Z Axis Drive way High-end magnetic linear motor + Servo motor
Feeding way Electric feeder with double motor

Certificates

As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,

etc.

Middle Speed 45000 CPH LED Lighting Making SMT Machine with 28PCS Feeders 0

Packages

Step 1: Packing in film package to prevent dust and water to the machine

Step 2: Packing in foam cotton to protect the outside of the machine

Step 3: Packing in vacuum package to keep dry of the machine during transportation

Step 4: Transportation by truck to specified port

Middle Speed 45000 CPH LED Lighting Making SMT Machine with 28PCS Feeders 1

Related machine

ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.

Middle Speed 45000 CPH LED Lighting Making SMT Machine with 28PCS Feeders 2
