Product Details:
Payment & Shipping Terms:
|
| Dimension: | 3150*2250*1650mm | PCB Size: | Max: 1200*300mm Min: 100*100mm |
|---|---|---|---|
| PCB Thickness: | 0.5~5mm | Mounting Mode: | Group Picking And Separately Placing、separately Picking And Separately Placing |
| Mounting Precision: | ±0.04mm | Mounting Height: | <15mm (Automatic Changing) |
| Mounting Speed: | 90000 CPH | Components Space: | 0.2mm |
| No.of Feeders Station: | 48 PCS | No.of Head: | 24 PCS |
| Power: | 380AC 50Hz | Power Consumption: | 8 KW |
| High Light: | 0.2mm Components Pick Place Machine,Power Driver LED Bulb Maker Machine,90000CPH LED Bulb Maker Machine |
||

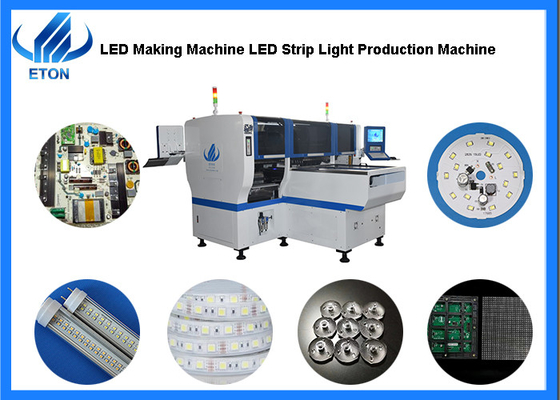

Led Bulb Power Driver Making Machine 90000CPH 0.2mm Components Pick And Place Machine
Production Introduction of Pick and Place Machine HT-E8D
1. Double module magnetic linear motor multifunctional pick and place machine.
2. Mounting components: LED chip,capacitors,resistors,lens,IC,shaped components,etc.
3. Component: Min. Size 0402 Max. Height 15mm.
4. Application: Power driver,electric board,lens,DOB bulb,linear bulb,household appliance etc.
Exclusive patent technology
Electronic feeder feeding system.
Vision alignment flight identification, Mark correction.
Non-stop material re-loading function
Auto-optimization after coordinates generated, etc.
HT-E8D of Technical Parameter
| Dimension | 3150*2250*1650mm |
| PCB Size | Max: 1200*300mm Min: 100*100mm |
| PCB Thickness | 0.5~5mm |
| Mounting mode | Group picking and separately placing,separately picking and separately placing |
| Mounting precision | ±0.04mm |
| Mounting height | <15mm (Automatic changing) |
| Mounting speed | 90000 CPH |
| Components | LED chip,resistors,capacitors,IC,shaped components etc. |
| Components space | 0.2mm |
| No.of feeders station | 48 PCS |
| No.of head | 24 PCS |
| Power | 380AC 50Hz |
| Power consumption | 8 KW |
| X,Y,Z Axis drive way | High-end magnetic linear motor and servo motor |

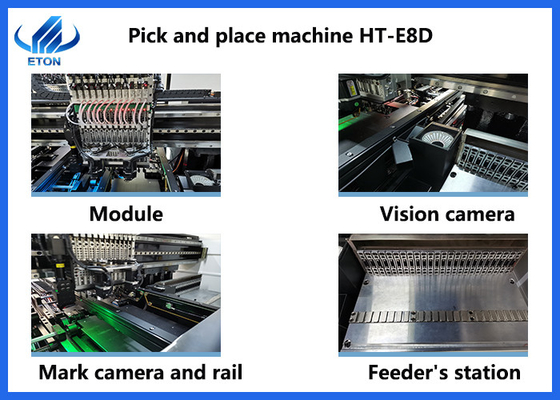

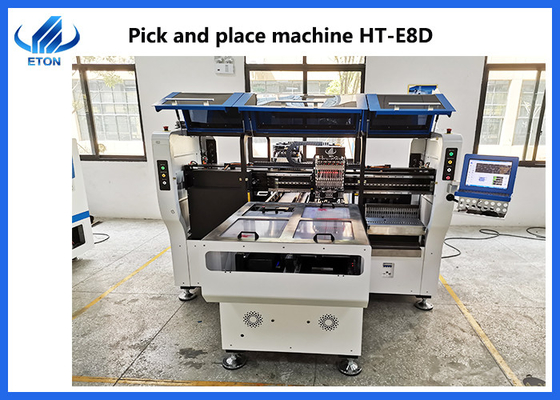

HT-E8D Picture
Application of HT-E8D
Apply to tube,driver,bulb,strip,lamp,panel,ceiling light,down light,screen,street light,etc.
Apply to mounting LED,capacitors,resistors,IC,shaped components etc.
Company Introduction
1. 10 years development history
2. Independent R&D, Exclusive Patented Technology
3. 80% large and listed LED factory are our client
4. Top 1 in high-speed pick and place machine in China
Shenzhen ETON Automation Equipment Co.,Ltd. Was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machine and SMT peripheral automation equipment. The company has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.
Certification
We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, we got 9 invention patents, 112 practical patents,12 software patents and have rich experience(more than 8 years) in LED light production line program.
Our after-sales service of Pick and Place Machine
We provide send Free parts send to you in machine warranty period,and our engineers will visit to your factory help you to solve your machine’s problem.
Engineer site service installation and training.
After learning to maintain and use, you will be satisfied with our service.
Maintenance Period: 1 year. (whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free.
Visit customer regularly and gather information.
Provide latest information about technology and equipment.
Package and Delivery of Pick and Place Machine
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step1:Film packaging.
Step2:Vacuum packaging.
Step3:Wooden box packaging
You can trust us, because we have professional and standard packaging to protect the machine.
FAQ of Pick and Place Machine
Q: What are your advantages?
A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Q: Why choose us?
A: We provide professional in SMT line for 11 years,with strong production and strong capacity and R&D team,Has provided a lot of clients with modern SMT production line solutions.
Q: What is the mounting mode of your SMT machine?
A: Our multifunctional pick and place machine can group picking and separately placing or separately picking and separately placing, high-speed pick and place machine can group picking and group placing.
Q: Do you have oversea after sale service?
A: We can offer technical support abroad. If you in India,Turkey and Egypt, we have local engineers will support you fast.
Q: It’s hard to use the machine?
A: No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
