Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | New,100% Original,Brand-new |
| Weight: | 1700kg | Mounting Speed: | 250000 CPH |
| Feeders: | 68 | ||
| High Light: | LED Lighting Maching SMT Mounter,68 Heads LED Tube Making Machine,LED Tube Making Machine 250000CPH |
||

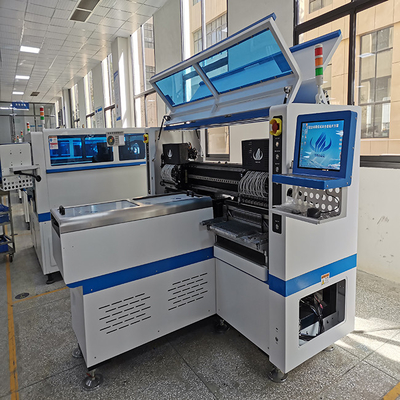

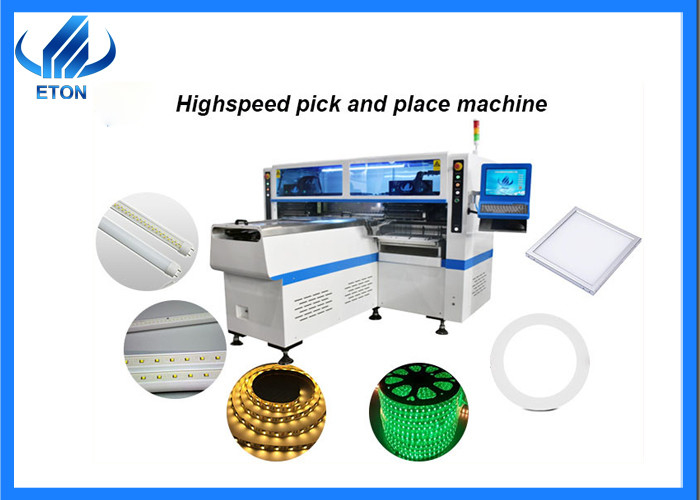

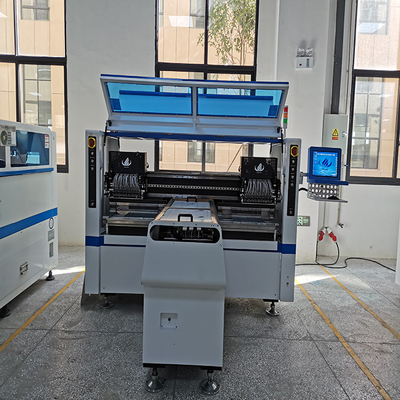

LED lighting maching mounter 68 heads LED tube making machine 250000CPH
Product description
| The double head magnetic levitation led high-speed chip mounter can mount four different materials at the same time without affecting the high production capacity. The fastest production capacity is between 200000-250000cph. |
| It is suitable for 0.6-1.2m hard lamp plate and 0.5-1m soft lamp strip. It can also produce 5-10m soft lamp strip through the back-end welding process. |
| The double patch head has four modules, each group has 17 suction nozzles, which can be pasted with 2-4 kinds of materials at the same time. A single disc can be pasted, and the same disc is always pasted on the same light strip. |
| It has the function of automatic material replenishment and automatic correction, and can be pasted with RGB |
Feature
1. The software independently developed by ETON company supports both Chinese and English versions, and can be upgraded free of charge for life to ensure your smooth production
2.Patch method is group take group paste
3. The maximum length supports 1200mm PCB
4.The combination of high-end Magnetic Levitation Motor and servo motor is adopted to ensure the mounting accuracy and service life to the greatest extent
Other advantages
Mounting component range: band mounted LED 3014/3020/3528/5050 or capacitance, resistance, bridge stack, etc.
Mounting element height ≤ 5mm.
Parameter
| Length: | 2700 mm |
| Width: | 2300 mm |
| Height: | 1550 mm |
| Total weight: | 1700 kg |
| Mounting speed: | 250000 CPH (optimum) |
| No.of heads: | 68 PCS |
| No.of feeders station: | 68 PCS |
| Feeding way: | Electric feeder with double motor |
| Components space: | 0.5 mm |
| Components: | LED 3014 /3020 /3528 /5050 and resistor,capacitor, bridge rectifiers. |
| Conveyor transmission: | Max length: 1200 mm |
Company show
ETON is not only in the leading position in the field of photoelectric high-speed mounter, but also has made a breakthrough in the field of SMT high-speed mounter. It has successfully developed a number of high-cost SMT high-speed universal mounter. Its products are widely used in lighting, display screen, electronics, driving power supply, household appliances, new energy and other industries.
Packaging
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
Service
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Engineers can arrive on site to teach operation and debug the machine
24 hours to deal with problems online, arrange engineers to solve problems
Software lifetime upgrade
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
