Product Details:
Payment & Shipping Terms:
|
| Product Name: | Automatic SMT Pick And Place Machine | Weight: | 1700KG |
|---|---|---|---|
| Mounting Speed: | 200000-250000 CPH | Warranty: | 1 Year |
| Application: | LED Any Length Of Flexible Strip | Power Supply: | 380AC 50HZ |
| Dimension: | 2700*2300*1550mm | Feeders: | 68 Pcs |
| High Light: | 250K Capacity SMT Machine,Flexible Strip Light SMT Machine,Long Flexible Strip SMT Machine |
||

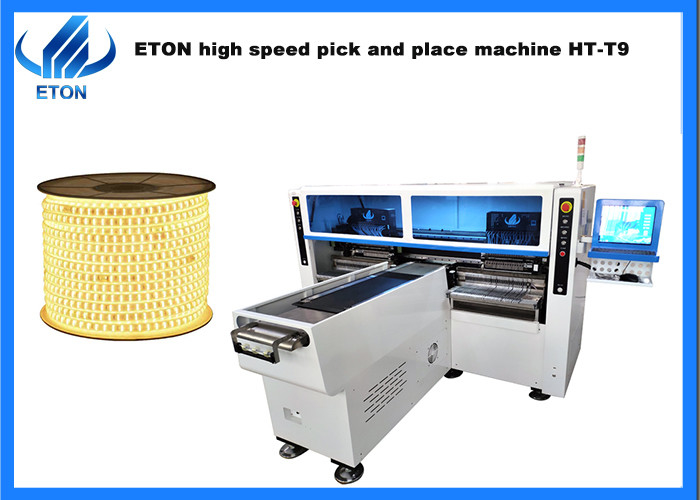

250K capacity for Long flexible strip light SMT machine
Description
IPC9850 Capacity: 200000~250000 CPH
Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0
Technical parameter
| Model | HT-T9 |
| Dimension | |
| Length | 3100mm |
| Width | 2300mm |
| Height | 1550mm |
| Total Weight | 1700kg |
| PCB | |
| PCB Length Width | 250mm*any length |
| PCB Thickness | 0.5-1.5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group to take and group to mount |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera | 5 PCS ( Digital camera) |
| Vision alignment, MARK correction | |
| Mounting Precision | ±0.02mm |
| Mounting Height | ≦5mm |
| Mounting Speed | 200000~250000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Speed | 0.5mm |
| No. of Feeders Station | 68 PCS |
| No. of nozzles | 68 PCS |
| Power | 380AC 50 HZ |
| Power Consumption | 6kw |
| Operating Environment | 23℃±3℃ |
| Conveyor transmission | Max Length :1000 mm |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor+ servo motor |
| Feeding way | Electric feeder with double motor |
Service
Free Software Upgrade: Offer free software upgrade whole lifetime
Shipping and Delivery
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
