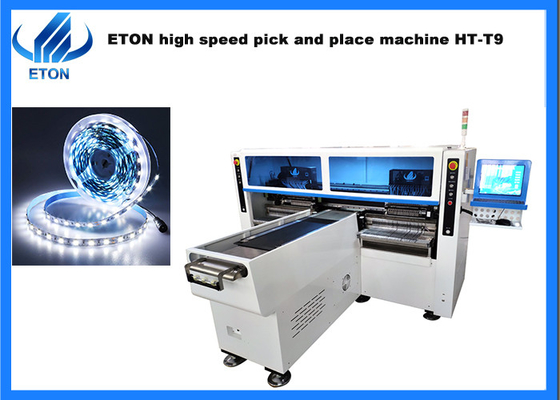

SMT High Speed Pick And Place Machine for 50M 100M LED Flexible Strip

SMT High Speed Pick And Place Machine for 50M 100M LED Flexible Strip
SMT High Speed Pick And Place Machine for 50M 100M LED Flexible Strip

Large Image :  SMT High Speed Pick And Place Machine for 50M 100M LED Flexible Strip

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA
Model Number: HT-T9
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Automatic SMT Pick And Place Machine Weight: 1700KG
Mounting Speed: 200000-250000 CPH Dimension: 2700*2300*1550mm
Feeders: 68 Pcs Pcb Thickness: 0.5-5 Mm
Warranty: 1 Year Power Supply: 380AC 50HZ
Condition: New Application: LED Any Length Of Flexible Strip
High Light:

LED High Speed Pick And Place Machines

,

50M LED Pick And Place Machine

,

100M LED Pick And Place Machine

50M 100M LED flexible strip SMT high speed pick and place machine



Description

  • Producing with Producing 4 types materials at the same time with high capacity, available for 5M, 50M or any length of Flexible strip and Roll to roll.
  • Dual arm four modul, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
  • Calibration automatically, high precision, available for RGB.
  • Exclusive patent technology: Group to pick and group to mount.



IPC9850 Capacity: 200000~250000 CPH

Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0



Technical parameter

Model HT-T9
Dimension
Length 3100mm
Width 2300mm
Height 1550mm
Total Weight 1700kg
PCB
PCB Length Width 250mm*any length
PCB Thickness 0.5-1.5mm
PCB Clamping Adjustable pressure pneumatic
Mounting Mode Group to take and group to mount
O.S.
System Windows7
Software R&D independently
Display Touch screen monitor
Input Device Keyboard, Mouse
Vision System
No. of Camera 5 PCS ( Digital camera)
Vision alignment, MARK correction
Mounting Precision ±0.02mm
Mounting Height ≦5mm
Mounting Speed 200000~250000 CPH
Components LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
Components Speed 0.5mm
No. of Feeders Station 68 PCS
No. of nozzles 68 PCS
Power 380AC 50 HZ
Power Consumption 6kw
Operating Environment 23℃±3℃
Conveyor transmission Max Length :1000 mm
Electrical control Independent research and development by ETON
Motion control card module 1 set Independent research and development by ETON
X,Y,Z Axis Drive way High-end magnetic linear motor+ servo motor
Feeding way Electric feeder with double motor

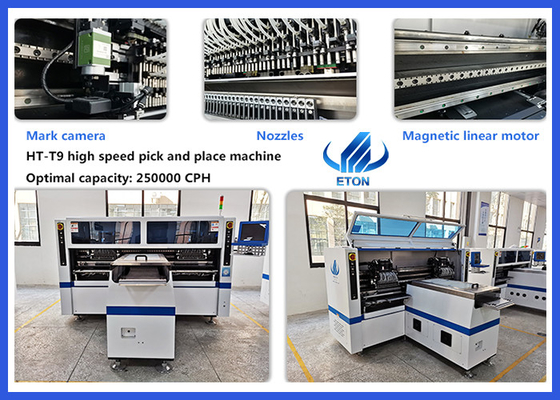

Machine main part

SMT High Speed Pick And Place Machine for 50M 100M LED Flexible Strip 0



SMT Line solution

The equipment required for the semi-automatic production line includes:

  • Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
  • Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
  • Reflow oven: melting the solder paste to make it adhere to the mounting components;
  • Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line

SMT High Speed Pick And Place Machine for 50M 100M LED Flexible Strip 1

Our advantage

  • Focusing on SMT high speed pick and place machine more than 20 years
  • The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
  • ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.

SMT High Speed Pick And Place Machine for 50M 100M LED Flexible Strip 2
