Warranty: | 1 Year | Application: | LED Strip, Tube, Panel Light |
---|---|---|---|
Power Supply: | 380AC 50HZ | Condition: | New |
Product Name: | Automatic SMT Pick And Place Machine | Weight: | 1700KG |
Mounting Speed: | 150000-180000 CPH | Dimension: | 2700*2300*1550mm |
Pcb Thickness: | 0.5-5 Mm | ||
High Light: | 18 w CPH SMT Placement Machine,LED chip SMT Placement Machine,resistor SMT Placement Machine |

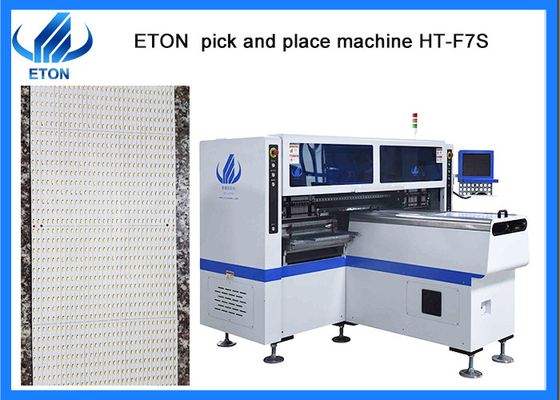

180000 CPH Magnetic linear motor SMT Placement machine
Features
IPC9850 Capacity: 150000-180000 CPH
Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0
Technical parameter
Model | HT-F7S |
Dimension | |
Length | 2700mm |
Width | 2300mm |
Height | 1550mm |
Total Weight | 1700kg |
PCB | |
PCB Length Width | Max:1200*330mm Min:100*100mm |
PCB Thickness | 0.5-5mm |
PCB Clamping | Adjustable pressure pneumatic |
Mounting Mode | Group to take and group to mount |
O.S. | |
System | Windows7 |
Software | R&D independently |
Display | Touch screen monitor |
Input Device | Keyboard, Mouse |
Vision System | |
No. of Camera | 5 PCS ( Digital camera) |
Vision alignment, MARK correction | |
Mounting Precision | ±0.02mm |
Mounting Height | ≦5mm |
Mounting Speed | 150000~180000 CPH |
Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
Components Speed | 0.5mm |
No. of Feeders Station | 68 PCS |
No. of nozzles | 34 PCS |
Power | 380AC 50 HZ |
Power Consumption | 6kw |
Operating Environment | 23℃±3℃ |
Transmission Speed | Max Length :1200 mm |
Transmission Direction | Single(left→ right or right→ left) |
Transmission Mode | Online drive |
X,Y,Z Axis Drive way | High-end magnetic linear motor+ servo motor |
Feeding way | Electric feeder with double motor |
Machine application
Application: apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip. And also suitable for mounting tube, panel light ,bulb etc.
PCB size: Max:1200*330mm;Min:100*100mm.
Our advantage
ETON is the pioneer of SMT machine field in China which have more than 11 years experiences. And owned CCC, SIRA, CE certificates with 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies.
Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
