Warranty: | 1 Year | Name: | SMT Automatic Pick And Place Machine |
---|---|---|---|
Application: | LED Strip, Tube, Panel Light | Product Name: | HT-F7S |
Weight: | 1700KG | Mounting Speed: | 150000-180000 CPH |
Dimension: | 2700*2300*1550mm | Condition: | New |
High Light: | SMT LED Tube Making Machine,Servo Motor LED Tube Making Machine,Linear Motor LED Tube Making Machine |

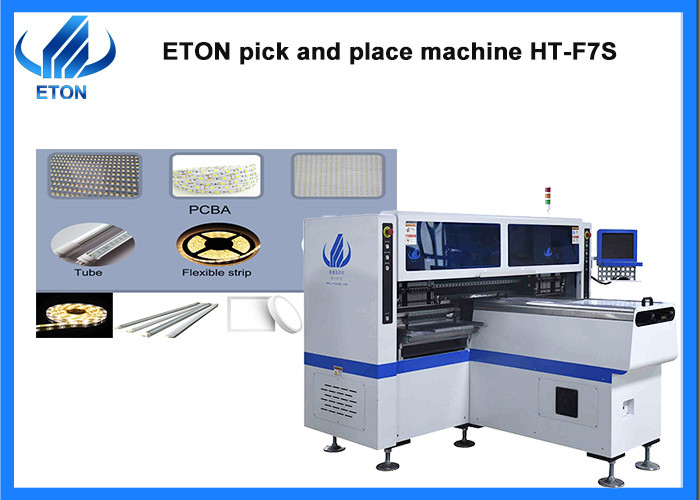

Producing 4 materials in one time SMT LED tube making machine
Features
IPC9850 Capacity: 150000-180000 CPH
Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0
Model | HT-F7S |
Dimension | |
Length | 2700mm |
Width | 2300mm |
Height | 1550mm |
Total Weight | 1700kg |
PCB | |
PCB Length Width | Max:1200*330mm Min:100*100mm |
PCB Thickness | 0.5-5mm |
PCB Clamping | Adjustable pressure pneumatic |
Mounting Mode | Group to take and group to mount |
O.S. | |
System | Windows7 |
Software | R&D independently |
Display | Touch screen monitor |
Input Device | Keyboard, Mouse |
Vision System | |
No. of Camera | 5 PCS ( Digital camera) |
Vision alignment, MARK correction | |
Mounting Precision | ±0.02mm |
Mounting Height | ≦5mm |
Mounting Speed | 150000~180000 CPH |
Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
Components Speed | 0.5mm |
No. of Feeders Station | 68 PCS |
No. of nozzles | 34 PCS |
Power | 380AC 50 HZ |
Power Consumption | 6kw |
Operating Environment | 23℃±3℃ |
Transmission Speed | Max Length :1200 mm |
Transmission Direction | Single(left→ right or right→ left) |
Transmission Mode | Online drive |
X,Y,Z Axis Drive way | High-end magnetic linear motor+ servo motor |
Feeding way | Electric feeder with double motor |

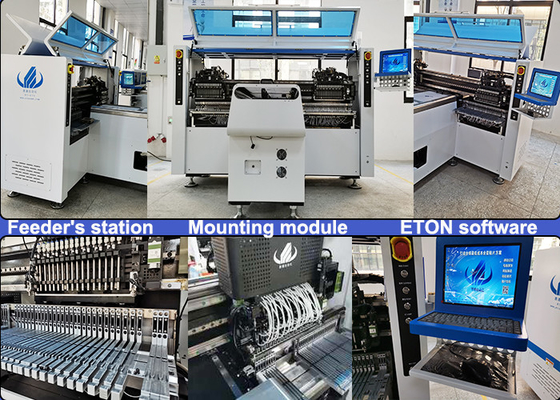

Machine main part
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Related Machine

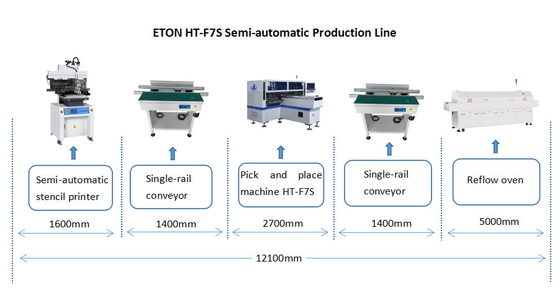

ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.
