Warranty: | 1 Year | Name: | SMT Automatic Pick And Place Machine |
---|---|---|---|
Application: | LED Strip, Tube, Panel Light | Power Supply: | 380AC 50HZ |
Condition: | New | Weight: | 1700KG |
Mounting Speed: | 150000-180000 CPH | Dimension: | 2700*2300*1550mm |
Feeders: | 68 Pcs | ||
High Light: | LED Products SMT Machine,1.2m Linear LED SMT Machine,Linear LED SMT Machine |

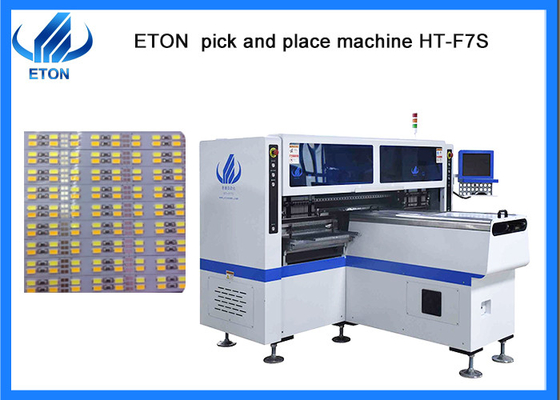

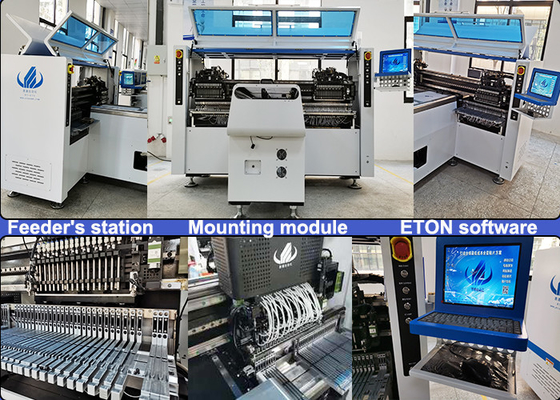

68 PCS heads Max PCB 1.2m linear LED products SMT machine
Description
IPC9850 Capacity: 150000-180000 CPH
Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0
Technical parameter
Model | HT-F7S |
Dimension | |
Length | 2700mm |
Width | 2300mm |
Height | 1550mm |
Total Weight | 1700kg |
PCB | |
PCB Length Width | Max:1200*330mm Min:100*100mm |
PCB Thickness | 0.5-5mm |
PCB Clamping | Adjustable pressure pneumatic |
Mounting Mode | Group to take and group to mount |
O.S. | |
System | Windows7 |
Software | R&D independently |
Display | Touch screen monitor |
Input Device | Keyboard, Mouse |
Vision System | |
No. of Camera | 5 PCS ( Digital camera) |
Vision alignment, MARK correction | |
Mounting Precision | ±0.02mm |
Mounting Height | ≦5mm |
Mounting Speed | 150000~180000 CPH |
Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
Components Speed | 0.5mm |
No. of Feeders Station | 68 PCS |
No. of nozzles | 34 PCS |
Power | 380AC 50 HZ |
Power Consumption | 6kw |
Operating Environment | 23℃±3℃ |
Transmission Speed | Max Length :1200 mm |
Transmission Direction | Single(left→ right or right→ left) |
Transmission Mode | Online drive |
X,Y,Z Axis Drive way | High-end magnetic linear motor+ servo motor |
Feeding way | Electric feeder with double motor |

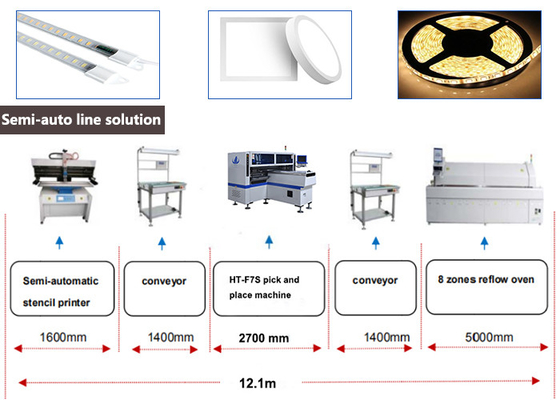

SMT Line solution
A whole semi automatic line which needs several devices for a whole semi production, as semi auto stencil printer machine, conveyor, pick and place machine and reflow oven etc.
