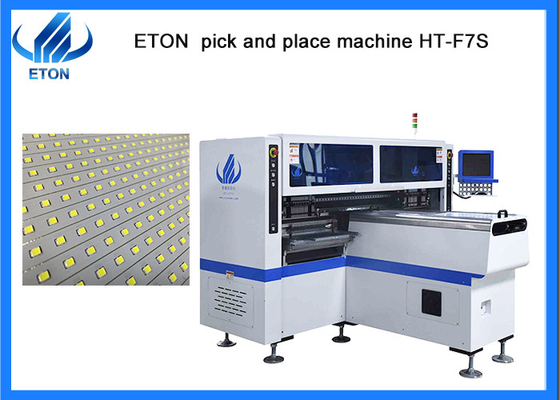

MAX 1.2M Rigid PCB 1M LED Flexible Strip Making Machine SMT Placement Machine

MAX 1.2M Rigid PCB 1M LED Flexible Strip Making Machine SMT Placement Machine
MAX 1.2M Rigid PCB 1M LED Flexible Strip Making Machine SMT Placement Machine MAX 1.2M Rigid PCB 1M LED Flexible Strip Making Machine SMT Placement Machine MAX 1.2M Rigid PCB 1M LED Flexible Strip Making Machine SMT Placement Machine

Large Image :  MAX 1.2M Rigid PCB 1M LED Flexible Strip Making Machine SMT Placement Machine

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA
Model Number: HT-F7S
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Application: LED Strip, Tube, Panel Light
Power Supply: 380AC 50HZ Condition: New
Weight: 1700KG Mounting Speed: 150000-180000 CPH
Dimension: 2700*2300*1550mm Feeders: 68 Pcs
Pcb Thickness: 0.5-5 Mm
Highlight:

Strip Making SMT Placement Machine

,

1M LED Flexible Strip Making Machine

,

Rigid PCB SMT Placement Machine

MAX 1.2 M rigid PCB 1 M LED flexible strip making placement machine



Features

  • High-end magnetic linear motor+ servo motor
  • Apply to the 0.6 M, 0.9 M, 1.2 M rigid PCB and 0.5 M, 1 M LED flexible strip. Producing with 4 types of materials with high capacity. available for board with any proportion of LED chip and resistor.

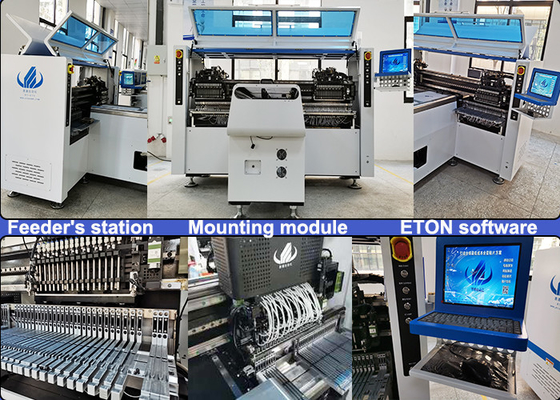

  • Two mounting modules, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
  • Exclusive patent technology: Group to pick and group to mount.



IPC9850 Capacity: 150000-180000 CPH

Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0

Technical parameter

Model HT-F7S
Dimension
Length 2700mm
Width 2300mm
Height 1550mm
Total Weight 1700kg
PCB
PCB Length Width Max:1200*330mm Min:100*100mm
PCB Thickness 0.5-5mm
PCB Clamping Adjustable pressure pneumatic
Mounting Mode Group to take and group to mount
O.S.
System Windows7
Software R&D independently
Display Touch screen monitor
Input Device Keyboard, Mouse
Vision System
No. of Camera 5 PCS ( Digital camera)
Vision alignment, MARK correction
Mounting Precision ±0.02mm
Mounting Height ≦5mm
Mounting Speed 150000~180000 CPH
Components LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
Components Speed 0.5mm
No. of Feeders Station 68 PCS
No. of nozzles 34 PCS
Power 380AC 50 HZ
Power Consumption 6kw
Operating Environment 23℃±3℃
Transmission Speed Max Length :1200 mm
Transmission Direction Single(left→ right or right→ left)
Transmission Mode Online drive
X,Y,Z Axis Drive way High-end magnetic linear motor+ servo motor
Feeding way Electric feeder with double motor



Service

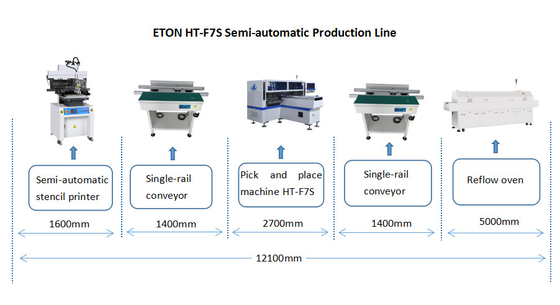

  • Professional solutions: Provide professional SMT Full line solutions
  • Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
  • Free Installation: On-site free installation to ensure smooth production.
  • Free Technical Training: Professional training of operating and maintenance.
  • Free Technical Support: 7 * 24 technical online support.
  • Free Software Upgrade: Offer free software upgrade whole lifetime

MAX 1.2M Rigid PCB 1M LED Flexible Strip Making Machine SMT Placement Machine 0

Market

Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:

SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.

MAX 1.2M Rigid PCB 1M LED Flexible Strip Making Machine SMT Placement Machine 1
