Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Model: | KT10S |
|---|---|---|---|
| Warranty: | 1 Year | Applicable Components: | 0201 |
| Condition: | 100% Original,Brand-new | Mounting Speed: | 48000 CPH |
| Feeders: | 52 |

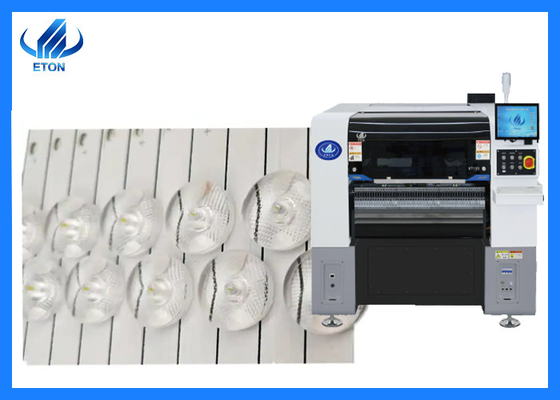

KT10S SMT Mounting Machine:50-500mm PCB Size, 0.5-5mm Thickness, Independent Vacuum Detection
Machine main parameter
| Model | KT10S |
| Dimension | 1490*2020*1650mm |
| Total weight | 2080kg |
| PCB size | Max:500*470mm(Length can be customized) Min:50*50mm |
| PCB thickness | 0.5-5mm |
| Mounting precision | CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ) |
| Mounting speed | 48000 CPH(Optimal speed) |
| Components | LED, capacitor, resistors, shaped components,etc |
| Power consumption | 220AC 50HZ 1.5KW |
| Feeder station | 52 PCS(option 104 PCS), IC tray option |
| No. of head | 10 PCS |
Machine main features
Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
Y axis double drive gantry, higher speed more stability
The placement head adopt independent vacuum detection, improve the placement performance
Off-line programming, save time of changeover cycle
Equipped coordinate import function, more intelligent
DOB Bulb making machine line
DOB Bulb making machine SMT Line is included stencil printer machine, conveyor, pick and place machine, reflow oven machine.
And this line is also not only suitable for making DOB, but also could be produce other led lighting, like the down-light, street light, panel light, driver board, etc.
Company profile
ETON Automation Equipment Co., Ltd.is a professional manufacturer focusing in pick and place machine. Right now, we have integrated R&D, production and sales together.
With good quality, competitive price, easy operation and energy saving, our products are very popular in domestic and oversea market. And all of our machines are wildly used in electronic circuit, photovoltaic, LED industry, instruments and apparatuses.
Up to now, our products are already sold in many countries such as USA , KOREA , INDIA , GERMANY , EGYPT , TURKEY , VIETNAM , TUNISIA , THAILAND more than 30 countries.We will continue to make great efforts to satisfy the customers' requirement.
Service
1.Pre-sale:Tailor the production line for your products
On sale:Track the arrival of logistics products at the destination
After sale:The warranty period of the whole machine is 1 year.
2.Visit customers regularly and gather information .
3.Provide latest information about technology and equipment.
FAQ
1. What are the main application about the pick and place machine?
We have many different machine, and different machines apply to different applications. The main products include panel light, ceiling light, LED bulb, LED tube etc. For example, the professional mounter HT-f9 is available for flexible strip and LED tube.
2. How about the operation software of the machine?
Our software are Independent R&D by ourselves with 2 language( English and Chinese).
3. How about your after sales services?
We have ONE YEAR Maintenance period. When you are operating ,you can communicate with our engineer for help any questions.
4. what can you buy from us?
Solder paste stencilprinter, conveyor, Pick and place machine, reflow oven and All equipment related to the smt production line
5. What’s the terms of payment?
T/T is OK. You can choose FOB Shenzhen.
LED pick and place machine is developing in the direction of high-efficiency production
One of the most important features of today's society is competition. It is this kind of competition that inspires people to explore and innovate; it is this kind of competition that promotes the rapid development of science and technology. Under the urging of the LED lighting market in full swing, the high-efficiency work of LED placement machines must become the embodiment of its core competitiveness. High efficiency means improving production efficiency, reducing working hours, increasing production capacity, and creating economic benefits. The main methods to improve efficiency on the current basis are: strengthening the automation performance of LED placement machines and improving the equipment structure and working mode.
