Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | 100% Original,Brand-new |
| Weight: | 1700kg | Mounting Speed: | 45000 CPH |
| Feeders: | 28 | Tape Width: | 8mm,12mm |

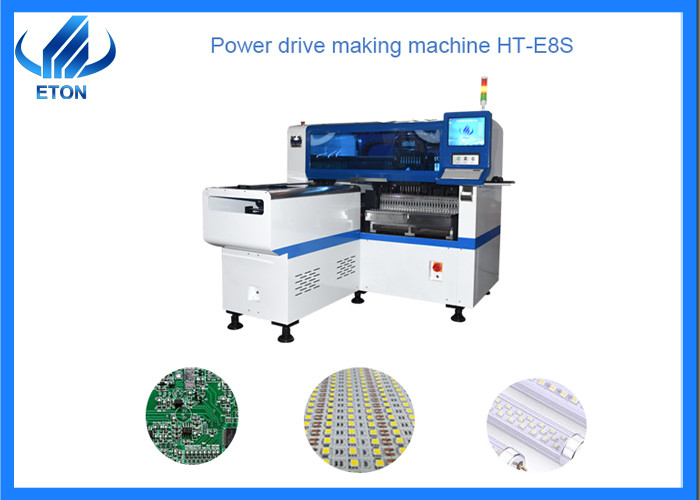

12 head wide use 0402 components smt mounter for smt production line
High LIGHT 1: High performance - Feature
1. X and Y Axis, each axis have 1 High-end magnetic linear motor.
Total have 2 High-end magnetic linear motor.
2. 12 placement mounting head, each head control by each servo motor.
Total 12 pcs mounting head.
3. 1 vision camera: Vision alignment flight identification,
4. 1 mark camera: Mark correction. ensure high precison.
Machine Parameter
| Model | HT-E8S-1200 |
| Dimension | |
| Length | 2550 mm |
| Width | 1650 mm |
| Height | 1550 mm |
| Total Weight | 1700 kg |
| PCB | |
| PCB Length Width | Max:1200*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera | 2 sets of imported camera |
| Vision for the flight identification, MARK correction | |
| Mounting Precision | ±0.04mm |
| Mounting Height | <15mm (Automatic Changing) |
| Mounting Speed | 45000 CPH |
| Components | LED , capacitors, resistors, IC,shaped components, etc. |
| Components Space | 0.2mm |
| No. of Feeders Station | 28 PCS |
| No. of nozzles | 12 PCS |
| Power | 380AC 50HZ |
| Power Consumption | 4 KW |
| Operating Environment | 23℃±3℃ |
| Conveyor transmission | Max length :1200 mm |
| Transmission Speed | ＞1000mm/sec |
| Transmission Direction | Both direction (option) |
| Transmission Mode | Auto online drive |
| Air supply | 0.4-0.6mpa (4-6kgf/cm2)150N/min |
| Electrical control | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor + Servo motor |
| Feeding way | Electric feeder with double motor |
