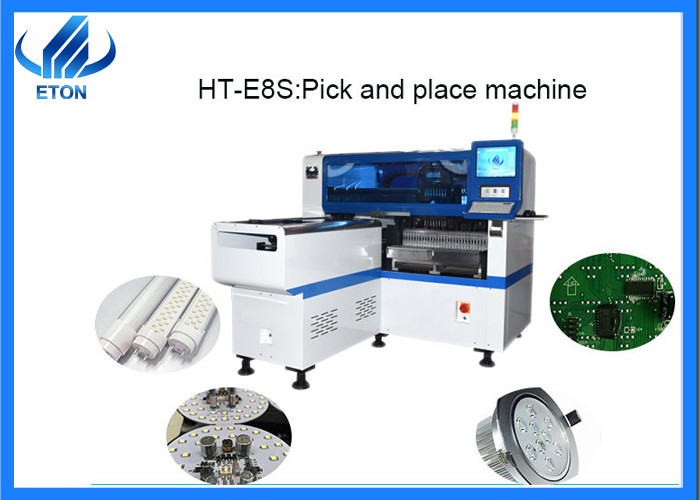

Powerful 220V Pick and Place Machine for LED Light Production

Powerful 220V Pick and Place Machine for LED Light Production
Powerful 220V Pick and Place Machine for LED Light Production

Large Image :  Powerful 220V Pick and Place Machine for LED Light Production

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE, CCC, SIRA
Model Number: HT-E8S-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum adsorption, wooden packing
Delivery Time: 30 days after receive the down-payment
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Warranty: 1 Year Applicable Components: 0402
Name: SMT Pick And Place Machine Condition: 100% Original,Brand-new
Weight: 1700kg Mounting Speed: 45000 CPH
Feeders: 28 Speed: 45000chips/h

220V Electronic Pick and Place Machine for led



Product Description

High Capacity:High-speed magnetic linear motor multi-functional pick and place machine in led light production line, single module, 12 head pasted on the 12 suction nozzles discharge at the same time, maximum mounting speed 45000 CPH.

High Precision: X axis, Y axis and feeding platform all adopt imported precision screw with high precision to improve equipment operation accuracy and transmission speed;MARK visual correction system, flight recognition visual alignment, taking photos and identifying PCB board positions to ensure patch accuracy.

Powerful functions: magnetic linear motor multifunctional pick and place machine with different feeder can be configured to meet the mounting requirements of various LED products.Can satisfy a variety of production requirements, cost savings and can meet the production requirements,

Operation&maintenance: Chinese and English graphical interface, easy to operate. Free software upgrades for life, can be saved and edited files, arbitrary call;Easy maintenance: simple design and easy maintenance. Low cost of replacement parts, low maintenance cost.



Technical Parameters

HT-E8S pick and place machine
PCB PCB length width Max:1200*350mm min:100*100mm
PCB thickness 0.5~5mm
PCB clamping Adjustable pressure pneumatic
O.S. system Windows 7
software R&D independently
display Touch screen monitor

Vision

system

No.of camera

2sets of imported camera

Vision for the alignment identification,mark correction

Mounting precision 0.02mm(repeat precision)
Mounting height <36mm
Mounting speed 45000CPH
Components space 0.2mm
No.of feeders station 36PCS
No.of nozzles 12PCS
Power 380AC 50HZ
Power consumption 4KW
Transmission direction Both direction
Transmission mode Auto online drive
Electrical control Independent research and development by ETON
Motion control card module 1set Independent research and development by ETON
X,Y,X axis drive way Servo motor+magnetic linear motor control for X,Y,Z axis



220V Electronic Pick and Place Machine with 1 Year Warranty high speed 0





Exhibition

Our company participates in many exhibitions at home and abroad every year,

You will see ETON's booth in some well-known large-scale exhibitions in China, including large-scale exhibitions held in Shenzhen, Guangzhou, Chongqing, Shanghai and other places.

Foreign exhibitions include exhibitions in more than 20 countries including Mumbai, Delhi, Egypt, Turkey, and Vietnam.



FAQ

1.How is your service?
If you buy our machine,we will send our engineer to your factory to install machine and training freely.
2.What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
3.How can you make sure we will receive the machine with high quality?
Our team will inspect each batch of machine before delivery, we have certificates of CE,Quality management certificate.
4.Is your software interface in English?
English interface and Chinese interface are both available.
5.How is the warranty?
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
6. What your main customers?
We have exported machine to different countries,such as India,Egypt,Korea,Turkey,Brazil etc.
Such as FSL,ETI,KONKA,OPPLE,MLS are our client,In india such as RK,Surya,skyquad are our client.
