Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | 100% Original,Brand-new |
| Weight: | 1700kg | Mounting Speed: | 45000 CPH |
| Feeders: | 28 | Speed: | 45000chips/h |

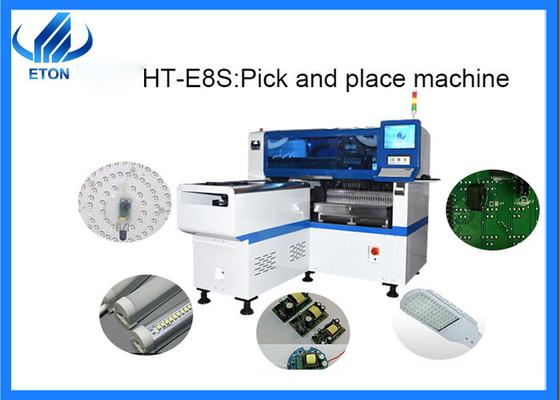

220V Electronic Pick and Place Machine for led
1)Single module magnetic linear motor multifunctional pick and place machine.
2)Mounting components: LED chip,capacitors,resistors,lens,IC,shaped components,etc.
3)Component: Min.size 0402. Max.height 15mm.
4)Application: power drive. electric board. Lens. DOB bulb. Linear bulb. Household appliance,etc.
| HT-E8S pick and place machine | ||
| PCB | PCB length width | Max:1200*350mm min:100*100mm |
| PCB thickness | 0.5~5mm | |
| PCB clamping | Adjustable pressure pneumatic | |
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 45000CPH | |
| Components space | 0.2mm | |
| No.of feeders station | 36PCS | |
| No.of nozzles | 12PCS | |
| Power | 380AC 50HZ | |
| Power consumption | 4KW | |
| Transmission direction | Both direction | |
| Transmission mode | Auto online drive | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor+magnetic linear motor control for X,Y,Z axis | |
Application
E8S-1200 also can mount some complex components:LED, capacitors,resistors,IC,shaped components, etc.
The capacity of E8S-1200 is reach 40000-45000CPH.
Production: DOB, home appliance control boards, power drivers, LED down-lights, LED bulb lights, LED panel lights, etc.
Service
Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients.
1.How is your service?
If you buy our machine,we will send our engineer to your factory to install machine and training freely.
2.What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
3.How can you make sure we will receive the machine with high quality?
Our team will inspect each batch of machine before delivery, we have certificates of CE,Quality management certificate.
4. What your main customers?
We have exported machine to different countries,such as India,Egypt,Korea,Turkey,Brazil etc.
Such as FSL,ETI,KONKA,OPPLE,MLS are our client,In india such as RK,Surya,skyquad are our client.
