Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | 100% Original,Brand-new |
| Mounting Speed: | 40000 CPH | Feeders: | 28 |
| Application: | 1.2m Rigid Pcb And 1m FPCB | Local Service: | India, Egypt, Vietnam |

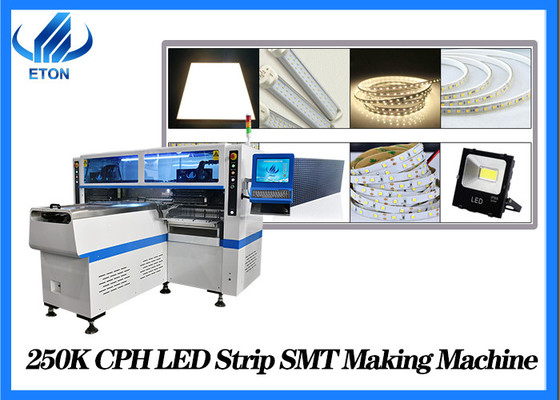

3020 3528 5050 Led Lamp Making Machine Pick And Place Automation Equipment
led light machine production led bulb automatic machine pcb assembly line
Product Description
|
Dimension
|
2700*2300*1550mm
|
|
PCB size
|
Max:1200*330mm Min:100*100mm
|
|
PCB Thickness
|
0.5-5mm
|
|
Mounting Mode
|
Group to take and group to mount
|
|
No. of Camera
|
5 PCS digital camera
|
|
Mounting Speed
|
250000 CPH
|
|
Applicable Components
|
LED 3014/3020/3528/5050,resistor,capacitors,bridge rectifiers
|
|
Feeders Station
|
68PCS
|
|
No. of Nozzles
|
68PCS
|
|
X,Y Axis drive way
|
High-end magnetic linear motor +servo motor
|
1. Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip. Producing with producing with 4 types materials at the same time with high capacity, available for board with any proportion of led chip and resistor.
2. Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.
Introduction of Our company
Since its establishment in 2011, ETON has been committed to the development and production of SMT placement machines.
Strong reach and develop technology team, support machine upgrade continuously, support client strong technical support.
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province, machine capacity more than 50 units/month.
Good and professional service. Provide engineer Door-to-door service, support video online training, video training.
share,free replaced machine core part during warranty. And also we could provide professional SMT line solution.
Our patents and certifications
We got 9 invention Patents, 112 practical patents,12 software copyrights.
◎ Electronic feeder feeding system.
◎ Vision alignment flight identification, Mark correction.
◎ Auto-optimization after coordinates generated ,etc.
◎ Non-stop material re-loading function.
More smt production line equipments
We have full range of pick and place machine production line equipment , So we have the professional suggestions for you to build the production line.
Below are the suggestion of basic steps for the pick and place progress and equipment :
Package and delivery
❆Standard export vacuum waterproof package
❆Strong wooden package for ensure safely delivery of heavy and large equipment
❆Delivery:By air,sea and railway.
Advantages of SMT:
High assembly density, small size and light weight of electronic products
High reliability, strong vibration resistance, low solder joint defects
Easy to realize automation and improve production efficiency
FAQ
Q1: Is it safe during the delivery?
A: All the machine is packed safely, by standard strong wooden carton with vacuum package.
Q2: how is the breakdown rate of machine?
A: our machine is very stable, the breakdown rate is less than 0.001.
Q3: Does your machine have quality certificate?
A: Our machine have pass CE certificate, SIRA, ISO and have patent
Q4: Can you support whole SMT line?
A: Yes, we can provide whole line solution if you want. We are very professional on SMT field.
