Product Details:
Payment & Shipping Terms:
|

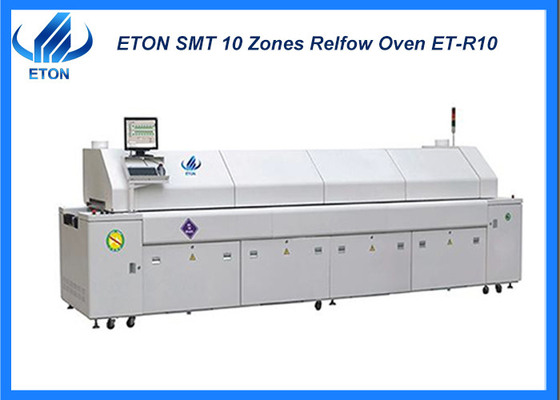

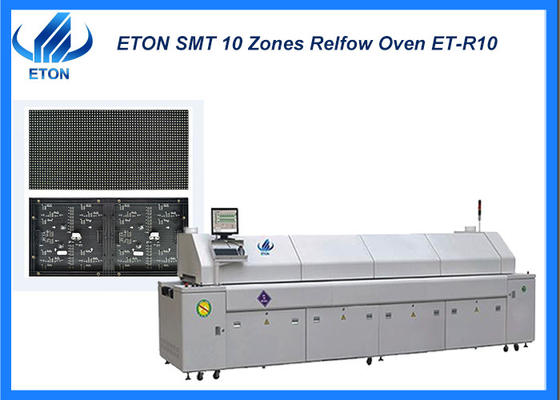

| Warranty: | 1 Year | Name: | SMT 10 Zones Reflow Oven Machine |
|---|---|---|---|
| Application: | SMD | Power Supply: | 3Φ、380V、50HZ |
| Condition: | New | Weight: | 2200kg |
| PCB Height: | Up:25mm Down:20mm Max:45mm | Delivery Method: | Mesh Belt +Chain |
SMT line solution 10 zones for PCB soldering 3900MM Length of heating zone
Description
Cooling and convenient flux recovery system
1. The forced cooling system adopts two-stage forced air cooling temperature zone to meet the lead-free process; the cooling curve is smooth, without abrupt change, full heat exchange, the slope can be controlled by frequency conversion, the tin point is smooth and bright, and the maximum cooling rate can reach -5℃ /S.
2. The flux collection system can keep the furnace clean for a long time, and the exhaust gas emission is more environmentally friendly. The gas separated in the nitrogen furnace can be recycled to save nitrogen.
3. No filter element design, easy to clean.
| Technical parameter: | |
| NO. of heating zone | 10 hot air circulation heating zones on the top and 10 hot air circulation heating zones on the bottom. |
| heating method | Flat-wound heating wire on both sides, pressurized air duct, point-to-point variable frequency motor heat exchange method, variable frequency motor drive |
| Length of heating zone | 3900MM |
| NO. of cooling zone | 2(Natural air cooling system) |
| Length of cooling zone | 1100MM |
| Conveyor belt width | 700MM |
| PCB size | 50-700mm |
| PCB height | Up:25mm down:20mm max:45mm |
| Transport direction | left-right(right-left) Optional |
| Delivery method | Mesh belt +Chain |
| Conveyor belt height | 900±20MM |
| PCB transportation speed | 0～1.8m/min |
| PCB temperature deviation | ±2℃ |
| Temperature control method | ±1-2℃(Static) |
| Temperature control range | Room temperature～350℃ can be set |
| Applicable solder type | Lead-free solder/leaded solder |
| Temperature control method | PID+SSR |
| Types of components used | CSP,BGA,μBGA,0201chip Single/double panel |
Our advantage
We can provide SMT line solution for you!
Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc
1.Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.
2.Provide Overseas engineers for Free installation and free training.
3.TOP brand of China SMT machine manufacturer,500 employees for ETON
Packages
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
Service
FAQ
Q. What services can you provide?
A.
1)We provide whole line solution for our clients;
Q. Does your machines have quality certificates?
A. We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and many technology patents, and have rich experience (more than 11 years) in LED light production line program.
