Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Power Supply: | 3Φ、380V、50HZ |
|---|---|---|---|
| Condition: | New | Weight: | 2200kg |
| Application: | SMD Production Line | Dimension: | L5800*1400*1600MM |
| Temperature Control Range: | Room Temperature～350℃ Can Be Set | Power Failure Protection: | UPS And Delayed Shutdown |

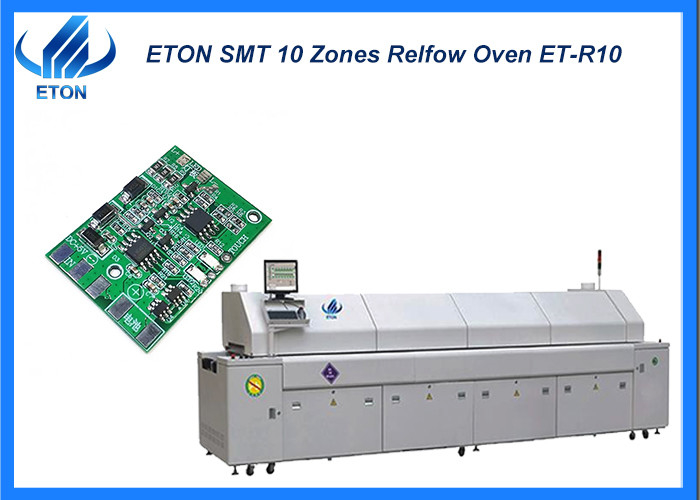

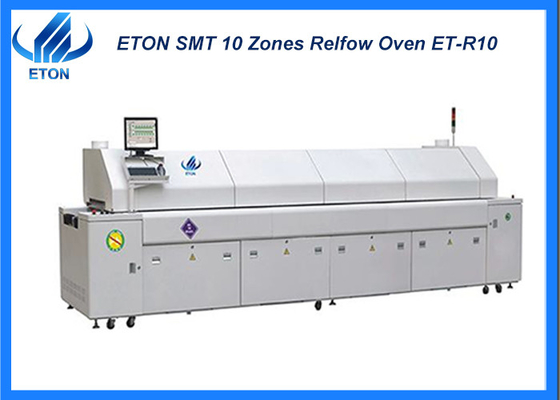

Reflow oven machine Temperature control method PID+SSR with 10 heating zones
Description
Reliable and stable transmission system
1. Symmetrical double-slot guide rail, high temperature resistance, no deformation, low heat absorption. Standard chain, net chain synchronous and parallel transportation, optional dual-rail transportation system or central support system.
2. The width adjustment adopts a three-stage synchronous width adjustment structure, and the two ends are equipped with automatic thermal expansion extension devices of the guide rails, which effectively ensure the parallelism of the guide rails, prevent the occurrence of board falling and jamming, free of cleaning, and easy to adjust.
3. The computer-controlled automatic refueling system can automatically refuel according to the transportation speed and machine status, and the flow rate is adjustable.
4. The automatic width adjustment system adopts closed-loop PID control, which can automatically adjust to the required width according to the parameters input by the computer, and the accuracy can reach 0.2mm.
5. The UPS power-off protection function ensures that the PCB board can output normally after a sudden power-off without damage.
| Technical parameter: | |
| NO. of heating zone | 10 hot air circulation heating zones on the top and 10 hot air circulation heating zones on the bottom. |
| heating method | Flat-wound heating wire on both sides, pressurized air duct, point-to-point variable frequency motor heat exchange method, variable frequency motor drive |
| Length of heating zone | 3900MM |
| NO. of cooling zone | 2(Natural air cooling system) |
| Length of cooling zone | 1100MM |
| Conveyor belt width | 700MM |
| PCB size | 50-700mm |
| PCB height | Up:25mm down:20mm max:45mm |
| Transport direction | left-right(right-left) Optional |
| Delivery method | Mesh belt +Chain |
| Conveyor belt height | 900±20MM |
| PCB transportation speed | 0～1.8m/min |
| PCB temperature deviation | ±2℃ |
| Temperature control method | ±1-2℃(Static) |
| Temperature control range | Room temperature～350℃ can be set |
| Applicable solder type | Lead-free solder/leaded solder |
| Temperature control method | PID+SSR |
| Types of components used | CSP,BGA,μBGA,0201chip Single/double panel |
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Shipping and Delivery
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
FAQ
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors,
that related to the number of the components, the time to send PCB board
and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
Q. Can you accept CIF as the quoted price?
A. We only accept EXW as the quoted price for it is convenient and lower cost for both sides.
Q. Can I go and see if you have sold the equipment to India?
A. Yes, we have sold our machine in India, but for the fact we can't decide it for my customer, but I will try to contact my customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.
Q. How many products can your machine make per day?
A. The capacity of our machine is according to the real products, and the number of components on your PCB board that is important factor to figure out the actual speed of our machine with your products.
Q.What kind of machine you have?
A. We are the high speed SMT pick and place machine manufacturer, and also we build our brand to more efficient and convenient machine for our customers. We have multifunctional type, honor series, value series with high precision and high productivity.
