Product Details:
Payment & Shipping Terms:
|
| Starting Power: | 90KW | Working Power: | 20KW |
|---|---|---|---|
| Warranty: | 1 Year | Application: | SMD Production Line |
| Power Supply: | 3Φ、380V、50HZ | Condition: | New |
| Product Name: | ET-R10 | Dimension: | L5800*1400*1600MM |

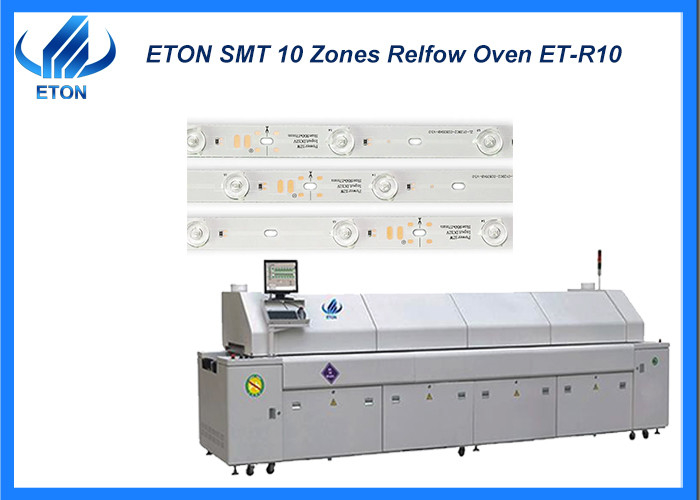

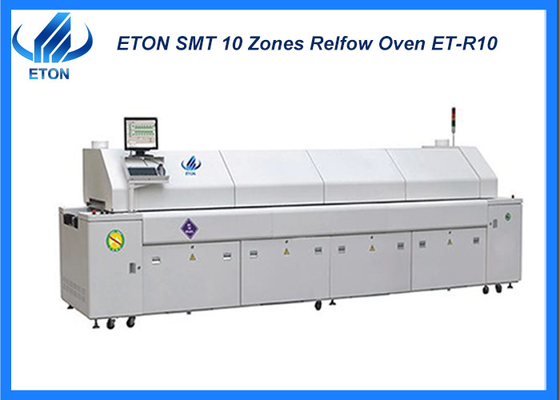

10 heating zones Lead-free solder 50-700mm PCB width Reflow oven machine
Description
Unique advanced long-life heating system
Adopt American HELLER world leading hot air circulation heating method, high-efficiency pressurized accelerating air duct, greatly increase circulating hot air flow, rapid temperature rise (about 20 minutes), high thermal compensation efficiency, high temperature welding and curing can be carried out; each temperature zone is set There are independent temperature sensing sensors, real-time monitoring and compensation of the temperature balance of each temperature zone; special pressurized air transport structure and special-shaped heating wire design, no noise, no vibration, with high heat exchange rate, The temperature difference it is extremely small between BGA bottom and PCB board, which is most in line with the strict requirements of lead-free process, especially for lead-free products with difficult soldering requirements.
| Technical parameter: | |
| NO. of heating zone | 10 hot air circulation heating zones on the top and 10 hot air circulation heating zones on the bottom. |
| heating method | Flat-wound heating wire on both sides, pressurized air duct, point-to-point variable frequency motor heat exchange method, variable frequency motor drive |
| Length of heating zone | 3900MM |
| NO. of cooling zone | 2(Natural air cooling system) |
| Length of cooling zone | 1100MM |
| Conveyor belt width | 700MM |
| PCB size | 50-700mm |
| PCB height | Up:25mm down:20mm max:45mm |
| Transport direction | left-right(right-left) Optional |
| Delivery method | Mesh belt +Chain |
| Conveyor belt height | 900±20MM |
| PCB transportation speed | 0～1.8m/min |
Market
ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.
Related machine
ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.
Exhibition
Our company has participated in various exhibitions in foreign countries, including India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.
