Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Power Supply: | AC380 50Hz |
| Condition: | 100% Original,Brand-new | Mounting Speed: | 180000 CPH |
| Feeders: | 68 | Tape Width: | 24mm,8mm,12mm |

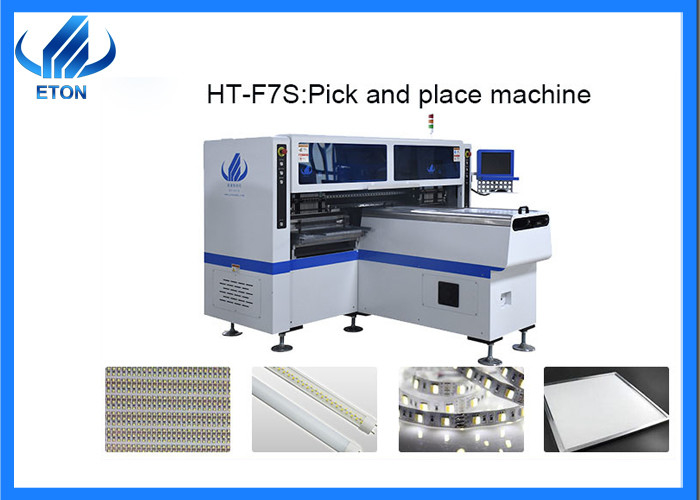

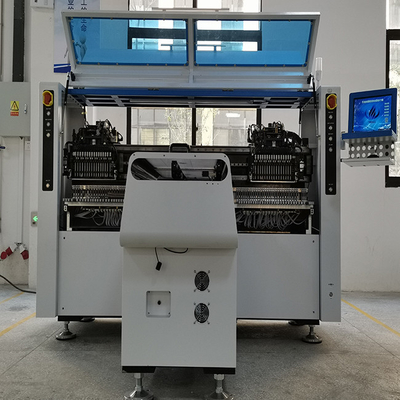

Led Tube assembly machine with 34 heads and 180K CPH SMT machine
The technical parameter
| 1 | Total weight: | 1700kg |
| 2 | Dimension | 2700*2300*1550mm |
| 3 | PCB length width | Max:1200*330mm Min:100*100mm |
| 4 | PCB thickness | 0.5-5mm |
| 5 | PCB clamping | Adjustable pressure pneumatic |
| 6 | Mounting mode | Group picking and group placing |
| 7 | No. Of camera | 5 sets of digital camera |
| 8 | Mounting precision | ±0.02mm |
| 9 | Mounting height | ≤5mm |
| 10 | Power consumption | 6kw |
| 11 | X,Y,Z Axis drive way | High-end magnetic linear motor and servo motor |
| 12 | No. Of feeders station | 68 PCS |
| 13 | No. Of head | 34PCS |
| 14 | Feeding way | Electric feeder with double motor |
Machine main features
1. produce two to four different types of materials at the same time.
2. Each mounting head has 17 nozzles,Total 34 heads
3. Every mounting head can be mounted separately or synchronously.
4. mounting speed 180000 chips per hour.
5. group to pick and group to mount
6. HT-F7S apply to LED tube, LED strip, panel light etc.
| Low failure rate | The feeding method adopts dual-motor electronic feeder, independent control is more precise. |
| intelligent | Automatic recognition of compensation optimization, and non-stop refueling function. |
| Wide application | Mounting technology is group picking and splitting, splitting and splitting, which is suitable for the mounting of a variety of products, such as: flexible light strips, panel lights, lenses, display screens, bulbs, tubes, etc. |
Prepare
Production accessories: solder paste
Production equipment:
1. Solder paste mixer
2. Solder Paste Printer
3. SMT placement machine
4. Reflow soldering machine
Our advantage
Shenzhen ETON Automatic Equipment Co.,Ltd. was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high- speed pick and place machines and SMT peripheral automation equipment.
Eton is the leading manufacturer of global optoelectronic high-speed pick and place machine, the products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil etc.
FAQ
Why you choose us?
We have more than 10 years experience, Independent offices have been set up in India, Turkey, Egypt and other countries to provide better services.
We obtain a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights. We can provide latest information about technology and equipment.
Is it hard to operate?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company. About 3-5 days you can operate.
Can you use CIF price?
CIF price need add the freight, insurance fee on the basis of EXW price, and the India delivery forwarder will charge ours more yours. So actually to do EXW will more simple and save cost for you.
Can we support whole SMT line?
Yes, we can provide whole line solution if you want. We are very professional on SMT field.
What machine can you buy from us?
We can provide a product line of SMT. Such as Multi-function placement machine, high-speed placement machine, dispensing machine, loading machine, printing machine, reflow soldering, etc.
