Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Power Supply: | AC380 50Hz |
| Condition: | 100% Original,Brand-new | Mounting Speed: | 180000 CPH |
| Feeders: | 68 | Tape Width: | 24mm,8mm,12mm |
| High Light: | 5M LED Strip Lights Making Machine,34 Heads LED Strip Making Machine,SMT Machine 180000CPH |
||
Led Tube assembly machine with 34 heads and 180K CPH SMT machine
The technical parameter
| 1 | Total weight: | 1700kg |
| 2 | Dimension | 2700*2300*1550mm |
| 3 | PCB length width | Max:1200*330mm Min:100*100mm |
| 4 | PCB thickness | 0.5-5mm |
| 5 | PCB clamping | Adjustable pressure pneumatic |
| 6 | Mounting mode | Group picking and group placing |
| 7 | No. Of camera | 5 sets of digital camera |
| 8 | Mounting precision | ±0.02mm |
| 9 | Mounting height | ≤5mm |
| 10 | Power consumption | 6kw |
| 11 | X,Y,Z Axis drive way | High-end magnetic linear motor and servo motor |
| 12 | No. Of feeders station | 68 PCS |
| 13 | No. Of head | 34PCS |
| 14 | Feeding way | Electric feeder with double motor |
Best High volume strip light mounter

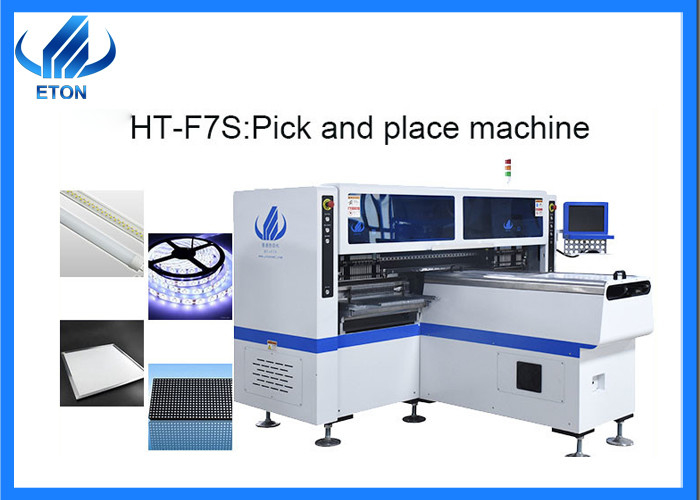

HT-F7S is applicable to 0.6m, 0.9m, 1.2m hard lamp board, 0.5m, 1m LED strip light and panel lamp. It can also produce RGB strip light.
2-4 kinds of materials can be pasted at the same time.
Main features

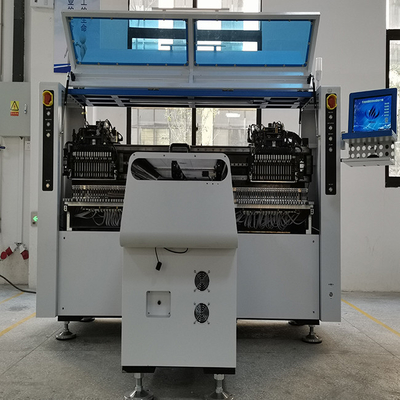

● Dual arm magnetic linear LED high-speed pick and place machine
● 68 feeder stations and 34 nozzles
● Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip.
● Producing with 4 types materials at the same time with high capacity.
● Available for board with any proportion of LED chip and resistor.

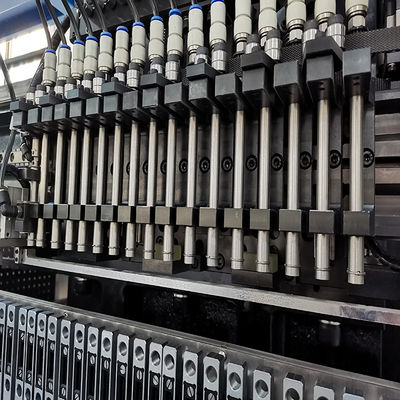

● Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.
● Calibration automatically, high precision, available for RGB.
● Exclusive patent technology: Group to take and group to mount.
Company profile
Brand influence
ETON is the No. 1 brand of placement machines in China, enjoys a high reputation at home and abroad, has
extensive influence. Many customers trust our brand and become repeat customers of our company by domestic
and foreign customers. ETON automatic high-speed energy-saving placement machine T9-2S with 500000 CPH,
with its unique technology, strong production capacity and perfect after-sales service system, has completely
subverted the LED placement machine industry and solved the problem of soft lights with long lights.
Certification:
We got 9 invention patents, 112 practical patents,12 software patents.
We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, and have rich experience(more than 10 years) in LED light production line program.
FAQ
1.What can you company offer us?
A:Free warranty within one year.
2.Can you provide a complete production line machine for us ?
A:Yes,our company can provide for your.
3.Why we choose you company?
A:ETON has independently developed the world's first technological invention patents and
proprietary technologies, including 9 invention patents, 12 software copyrights and 112
practical patents.
