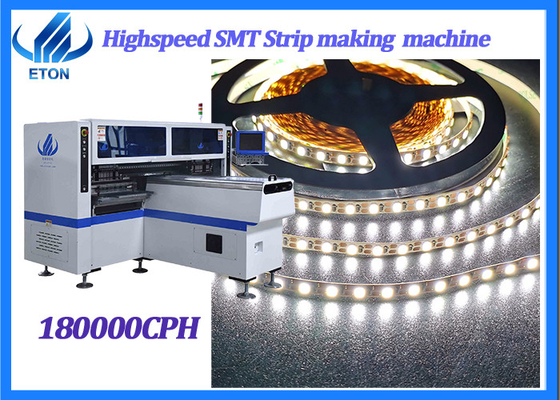

LED Tube Light Strip Light Mounter Pick And Place Machine Dual Arm High Speed 34 Heads
Production Introduction of Pick and Place Machine HT-F7S
1. Dual-arm professional highspeed mounter, 2~4 type of materials capacity reach 18000 CPH
2. Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip light, available for board with any propotion of LED chip and resistor.
3. Two mounting modules, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
4. Calibration automatically, high precision, available for RGB.
5. Exclusive patent technology: Group to take and group to mount.
HT-F7S of Technical Parameter
| Dimension |
2700*2300*1550mm |
| PCB Size |
Max:1200*330mm
Min:100*100mm
|
| PCB Thickness |
0.5~5mm |
| Mounting mode |
Group picking and group placing |
| Mounting precision |
±0.02mm |
| Mounting height |
≤5mm |
| Mounting speed |
150000-180000 CPH |
| Components |
LED 3014/3020/3528/5050 and resistors,capacitors,bridge rectifiers etc. |
| Components space |
0.5mm |
| No.of feeders station |
68 PCS |
| No.of head |
34 PCS |
| Power |
380AC 50Hz |
| Power consumption |
6KW |
| X,Y,Z Axis drive way |
High-end magnetic linear motor and servo motor |

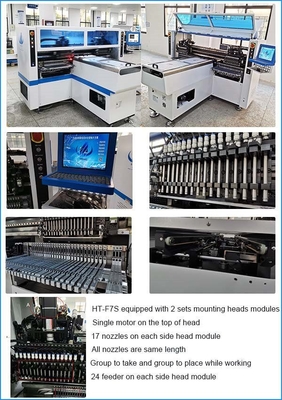

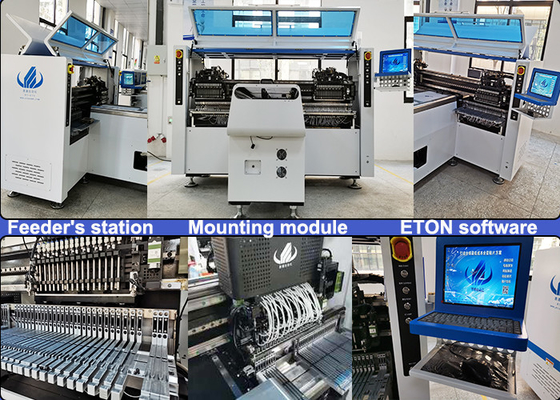

HT-F7S Pictures
Application of HT-F7S
Apply to LED Tube light and the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip light etc.

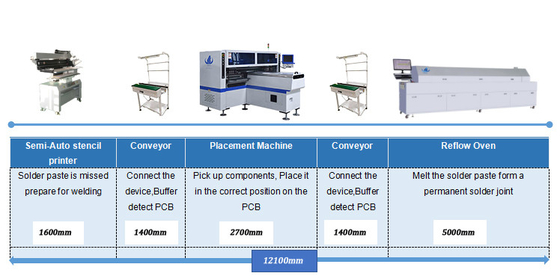

HT-F7S full-automatic production line
Company Introduction
Certification
We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, we got 9 invention patents, 112 practical patents,12 software patents and have rich experience(more than 8 years) in LED light production line program.
Package and Delivery of Pick and Place Machine
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking.
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking.
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix in the wood carton, effectively prevent collision and shock.
Our after-sales service of Pick and Place Machine
We provide send Free parts send to you in machine warranty period,and our engineers will visit to your factory help you to solve your machine’s problem.
Engineer site service installation and training.
After learning to maintain and use, you will be satisfied with our service.
Maintenance Period: 1 year. (whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free.
Visit customer regularly and gather information.
Provide latest information about technology and equipment.
FAQ of Pick and Place Machine
Q: It’s hard to use the machine?
A: No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
Q: Does your machines have quality certificates?
A: We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, and have rich experience(more than 8 years) in LED light production line program. 可以写:发明专利9项,12项软件著作权,112项实用型专利
Q: What’s the terms of payment? What about the trade term?
A: T/T is OK. You can choose FOB Shenzhen.
Q: What’s your delivery time?
A: Usually 30 days after deposit, if we have inventory, the time can be brought forward.
Q: Is there any quality guarantee?
A: We stick to quality first, client-oriented, Continuous improvement!
