| Name: | Pick And Place Machine | Dimension: | 2550*1650*1550mm |
|---|---|---|---|
| Nozzles: | 8PCS | Feeders: | 30 PCS |
| System: | Windows7 | Software: | R&D Independently |
| Warranty: | 1 Year | Usage: | Special For The LED Strip,LED Tube Large Qty Production,LED,Circuit Board Assembly/SMD/LED Tube Large Qty Production |
| Name: | Low Cost Automatic Smd Led Mounting Machine For Industries,Pick Amd Place Machine\LED Mounter\led Assembly Machine,SMT Pick And Place Machine,LED Chip Mounter,PCB Pick And Place Robot Machine SMD LED Mounting Machine | Application: | SMT Production Line,LED Pick And Place,smd Pick Place |
| Power Supply: | 220V,50/60Hz,220V/110V | Item: | Smd Mounting Machine |
| High Light: | 8PCS Nozzles Pick and Place Machine,Windows7 System Pick and Place Machine,Pick Place Machine With Magnetic Motor |
||

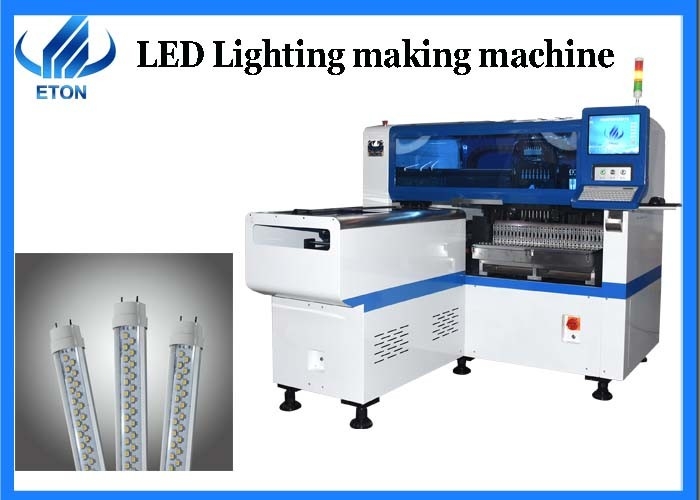

High-speed magnetic linear motor multi-functional pick and place machine, single module,
12 head pasted on the 12 suction nozzles discharge at the same time, the flying camera component identification,
maximize placement rate, maximum patch speed 45000 CPH, has exclusive patent technology:
electronic feeder feeding system, faster and more accurate, MARK correction, non-stop material re-loading system, save time cost and artificial cost. The maximum size of PCB is 1200*350mm
Power driver,electric board,lens,linear bulb,household appliance etc.
Scope of application
Lamps and lanterns: fluorescent lamp, bulb lamp, ceiling light, panel light, cast light lamp, mining lamp, down light, etc
Lighting: soft light tube, hard tube, advertising module, etc
Pasting class: LED watch pasting
HT-E8S-1200 SMT machine
Single module linear motor multifunctional pick and place machine
Mounting components:
LED,capacitors,resistors,IC,shaped components,etc.
Application
Power driver,electric board,lens,linear bulb,household appliance etc.
| HT-E8S pick and place machine | ||
| PCB | PCB length width | Max:1200*300mm min:100*100mm |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 40000CPH | |
| Components space | 0.2mm | |
| No.of feeders station | 30PCS | |
| No.of nozzles | 8PCS | |
| Power | 380AC 50HZ | |
| Power consumption | 4KW | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | Electric feeder with double motor | |
1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;
Packing Details :Plywood case, for export!
Port:Shenzhen
Delivery Details : 25-30days
After the completion of the machine, the fuselage shall be protected and wrapped with plastic film to avoid damage caused by collision of goods during export transportation.
We will measure the size of the machine customized by the customer, then customize a wooden box, so that the machine and the size of the wooden box are just right.
After the customization of wooden boxes, we use wooden boxes for export, wooden boxes are strong, suitable for export machinery and other heavy objects, to protect them
Our products from the production to packaging to transportation, have strict quality control, use high-quality materials, make the best products, so that every customer satisfaction.
