High practicability, quality stability LED strip Welding machine SMT production
Product Brief:

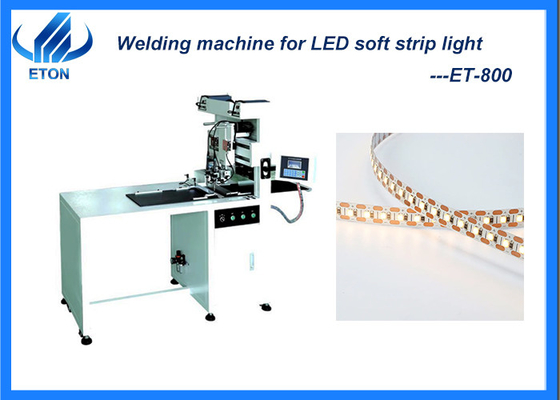

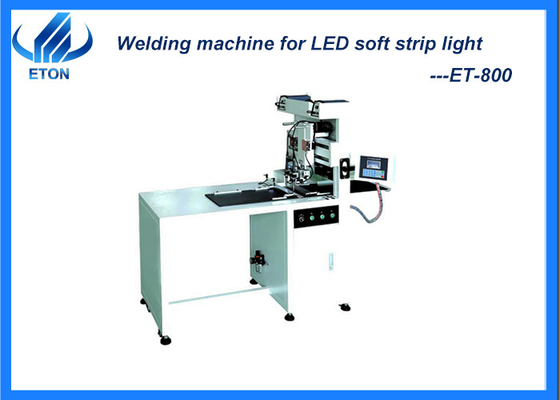

ET-800 LED Soft light strip plate Welding machine is a dedicated automatic welding equipment for 5 meter LED strip welding, according to the characteristics of LED equipment 5 meters depth of humanization design, engaged in a variety of different solder joints instead of manual soldering work, solve the manual welding of weld solder joint is not uniform, and other phenomena, and compatible with a variety of types of LED soft strip size of welding, simple operation and high practicability, quality stability, greatly enhance the efficiency.
Product advantages:
- Simple programming, operation control box mobile head position.
- Welding speed, high efficiency, a solder machine can save 5-6 people
- Save tin wire, good consistency of solder joint
- High power heating controller ensures the stability of continuous welding
- The utility model relates to a double head fine tuning welding gun structure, which is convenient for regulating the welding torch spacing and synchronous operation
- Multi axis manipulator, advanced motion control algorithm, to improve the kinematic positioning accuracy and repeatability accuracy
- According to the professional design of the lamp batten, it is convenient for manual feeding and feeding
- Production efficiency: 1800-2000 meters /H.
- It can replace the manual process and optimize the quality control.
- Improve efficiency, save manpower, simple operation, new staff can achieve the welding effect of skilled workers
Scope of application:
LED soft light plate soldering machine application range: suitable for LED monochromatic light, 5050 RGB lamp string, lamp belt, lamp strip and other products
Technical parameters:
| Item |
parameter |
| Device name |
LED welding machine for soft light strip plate |
| Model |
ET-800 |
| control mode |
32 position DSP |
| Welding head |
2 iron heads work at the same time |
| Working stroke |
X axis 350MM,Z axis 150MM,platform 1000MM |
| Repeatability accuracy |
±0.05mm |
| Equipment power |
600w |
| Power Supply |
220V,50-60HZ |
| weight |
100KG |
| Size |
1600*1200*1400(Length*Width*Height) |
Our advantage
- Focusing on SMT high speed pick and place machine more than 20 years
- The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
- ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.
Packages
Keep a good quality of the machine when during transportation till the destination of our clients which is an imperative aspect for one of a suitable service for our clients to buy our machine, so making sure of a qualified and sturdy packing is a key mission for us, here are the specified steps for your reference:
FAQ
Q. How can I contact you to buy the goods in an efficient way?
A. Making enquiry of the products you want on the trading platform of Alibaba, Tradelink, foreign trade Express, or contact us with the social software as Whatsapp, Skype, etc.
Q. How can I look around your industrial park if I am on aboard?
A. If you have Chinese agent we can make an appointment to show you the environment, of course we also can make video call to show you the industrial park, or we will do some video to you if you need.
Q. Can you accept CIF as the quoted price?
A. We usually accept EXW as the quoted price.
