Product Details:
Payment & Shipping Terms:
|
| Application: | LED Strip | Power Supply: | 220V,50-60HZ |
|---|---|---|---|
| Condition: | New | Weight: | 100KG |
| Repeatability Accuracy: | ±0.05mm | Size: | 1600*1200*1400（Length*Width*Height） |
| Device Name: | LED Welding Machine For Soft Light Strip Plate | Welding Head: | 2 Iron Heads Work At The Same Time |
| High Light: | Simple programming SMT welding machine,SMT Welding Machine 600w,SMT Welding Machine For Light Plate |
||
Simple programming 600w Save labor cost SMT welding machine
Product Brief:

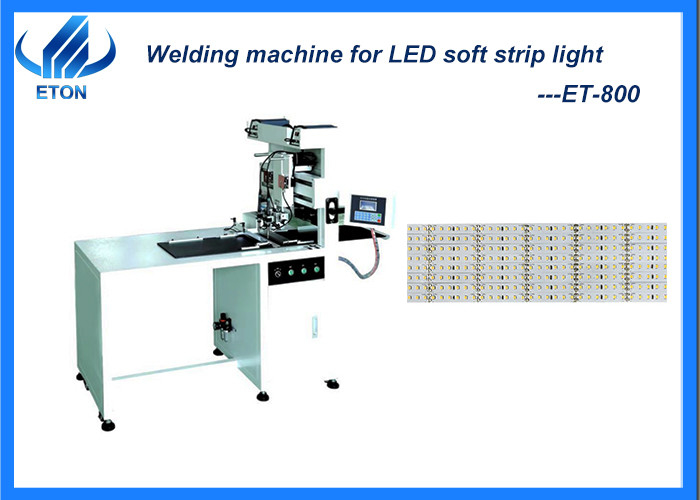

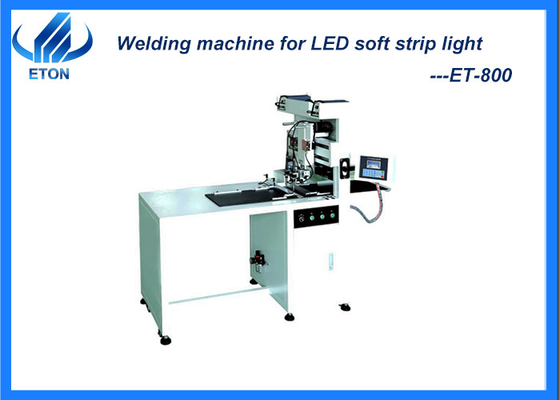

ET-800 LED Soft light strip plate Welding machine is a dedicated automatic welding equipment for 5 meter LED strip welding, according to the characteristics of LED equipment 5 meters depth of humanization design, engaged in a variety of different solder joints instead of manual soldering work, solve the manual welding of weld solder joint is not uniform, and other phenomena, and compatible with a variety of types of LED soft strip size of welding, simple operation and high practicability, quality stability, greatly enhance the efficiency.
Product advantages:
Scope of application:
LED soft light plate soldering machine application range: suitable for LED monochromatic light, 5050 RGB lamp string, lamp belt, lamp strip and other products
Technical parameters:
| Item | parameter |
| Device name | LED welding machine for soft light strip plate |
| Model | ET-800 |
| control mode | 32 position DSP |
| Welding head | 2 iron heads work at the same time |
| Working stroke | X axis 350MM,Z axis 150MM,platform 1000MM |
| Repeatability accuracy | ±0.05mm |
| Equipment power | 600w |
| Power Supply | 220V,50-60HZ |
| weight | 100KG |
| Size | 1600*1200*1400(Length*Width*Height) |
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Service
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Software lifetime upgrade
24 hours to deal with problems online
Engineers can arrive on site to teach operation and debug the machine
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
