LED soft light strip Welding SMT machine can save 5-6 people
Description

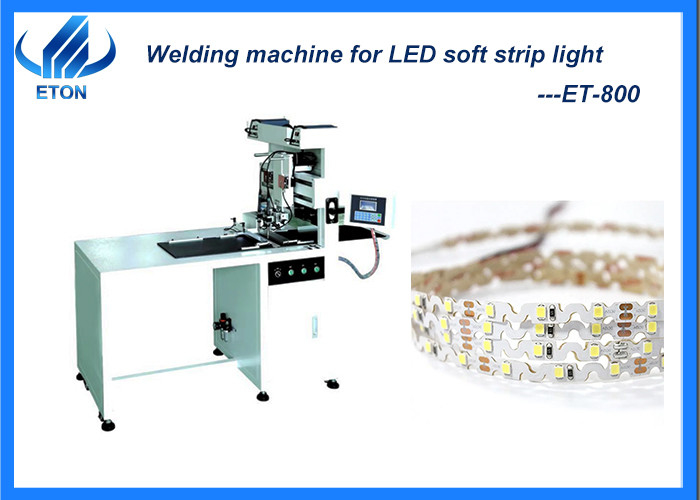

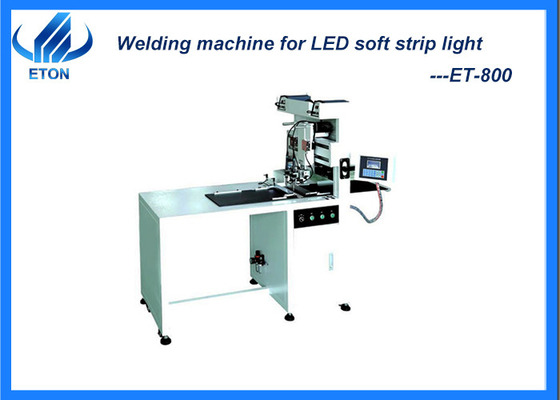

ET-800 LED Soft light strip plate Welding machine is a dedicated automatic welding equipment for 5 meter LED strip welding, according to the characteristics of LED equipment 5 meters depth of humanization design, engaged in a variety of different solder joints instead of manual soldering work, solve the manual welding of weld solder joint is not uniform, and other phenomena, and compatible with a variety of types of LED soft strip size of welding, simple operation and high practicability, quality stability, greatly enhance the efficiency.
Product advantages:
- Simple programming, operation control box mobile head position.
- Welding speed, high efficiency, a solder machine can save 5-6 people
- Save tin wire, good consistency of solder joint
- High power heating controller ensures the stability of continuous welding
- The utility model relates to a double head fine tuning welding gun structure, which is convenient for regulating the welding torch spacing and synchronous operation
- Multi axis manipulator, advanced motion control algorithm, to improve the kinematic positioning accuracy and repeatability accuracy
- According to the professional design of the lamp batten, it is convenient for manual feeding and feeding
- Production efficiency: 1800-2000 meters /H.
- It can replace the manual process and optimize the quality control.
- Improve efficiency, save manpower, simple operation, new staff can achieve the welding effect of skilled workers
Scope of application:
LED soft light plate soldering machine application range: suitable for LED monochromatic light, 5050 RGB lamp string, lamp belt, lamp strip and other products
Technical parameters:
| Item |
parameter |
| Device name |
LED welding machine for soft light strip plate |
| Model |
ET-800 |
| control mode |
32 position DSP |
| Welding head |
2 iron heads work at the same time |
| Working stroke |
X axis 350MM,Z axis 150MM,platform 1000MM |
| Repeatability accuracy |
±0.05mm |
| Equipment power |
600w |
| Power Supply |
220V,50-60HZ |
| weight |
100KG |
| Size |
1600*1200*1400(Length*Width*Height) |
Market
ETON company which not only provide our high speed SMT machine in Chinese market, but also overseas market to let our customer enjoy one site service, efficient production and low consumption.
Our Exhibitions
Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 30 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Shipping and Delivery
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
FAQ
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.
Q. How many components can your pick and place machine mount in a PCB board?
A. While this is for our clients needs and the size of the PCB board.
