Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | Reflow Oven |
|---|---|---|---|
| Application: | SMT Production Line,for SMT Machine | Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED |
| Zone: | 8 Zones | Local Service: | India, Egypt, Turkey, Pakistan |
| High Light: | High Stability SMT Reflow Oven,2000mm/min SMT Reflow Oven,SMT Reflow Oven soldering machine |
||
PCB soldering reflow oven for led/electric
Parameter
| Product model | ET-R8 | |
| Heating system | NO. of heating zone | Upper 8 hot air heating, lower 8 hot air heating |
| Length of heating zone | 3000mm | |
| heating method | Full hot air | |
| Delivery system | PCB maximum width | 450mm mesh belt, no lead rail |
| Transport direction | left-right,right to left(option) | |
| Conveyor belt height | Mesh belt 880±20mm | |
| Delivery method | Mesh belt drive + rail (optional) | |
| Conveyor speed | 0-2000mm/min | |

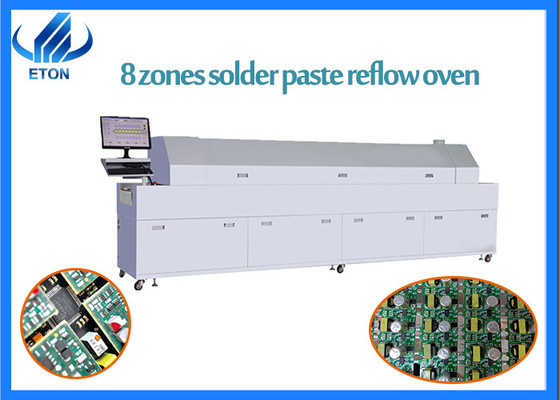

ET-R8 Reflow oven
All temperature zones are heated separately up and down, independent hot air circulation, independent temperature control, and the temperature control accuracy of each temperature zone is ±1℃.
Modular heating structure can effectively prevent the influence of airflow in the temperature range, ensure that the components are heated evenly, and the lateral temperature deviation is <±2℃.
The opening of the upper furnace body adopts pneumatic jacking, which is safe and reliable and convenient for furnace cleaning
Service
Maintenance period : 1 YEAR
Visit customers regularly and gather information
Provide latest information about technology and equipment
Overseas engineers teach equipment operation
Our products are exported to more than 20 countries overseas, such as South Korea, India,Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil, Iran and so on.And we also participate in many abroad and domestic Exhibition.
Why believe us?
1.ETON has a more than 10 years history in the SMT machine industry.
2.ETON is the No. 1 brand of pick and place machines in China .
3.The fastest speed reaches 50000 CPH and the precision reaches 0201mm.
4.Provide free software update lifetime
5.we can provide a whole SMT production line
6.Has an industrial park of 52000 square meters that can be controlled the quality from the source.
SMT placement machine failure analysis ideas
1 Detailed analysis of the working order of the smt placement machine and the logical relationship between them.
2. Understand the location, link and extent of the fault, and whether there is any abnormal sound.
3 Understand the operation process before the failure occurs.
4 Whether it occurs on a specific placement head and nozzle.
5 occurs on a specific device.
6 whether it happens on a specific batch.
7 Whether it happened at a particular moment.
FAQ
1.Do you provide the complete production line machine?
Yes, of course. We provide the whole production line machine, including solder paste printer machine, conveyor, pick and place machine reflow oven.
2.What are the main appliance about the pick and place machine?
We have many different machine, and different machines apply to different appliance. The main products include bulb, tube, flexible strip, panel light, down light,street light,ceiling light, wall washer light etc.
3. How about the operation software language of the machine?
Our software are Independent R&D by ourselves with 2 language( English and Chinese).
4. What’s the terms of payment?
T/T is OK. You can choose FOB Shenzhen.
5. Who are your main clients?
Our production have exported to more than 20 countries and regions, including South Korea, India, Egypt, Turkey, Russia etc.
