Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | Reflow Oven |
|---|---|---|---|
| Application: | SMT Production Line,for SMT Machine | Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED |
| Zone: | 8 Zones | Local Service: | India, Egypt, Turkey, Pakistan |
| High Light: | 8-Zone SMT Reflow Soldering Oven,Hot Air Heating SMT Reflow Oven,SIRA SMT Reflow Oven |
||

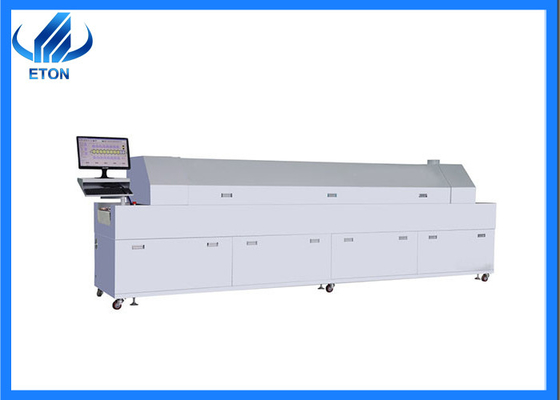

SMT Reflow Soldering Oven: ET-R8 8-Zone Hot Air Heating, ±2℃ Temp. Deviation
Description of reflow soldering
Reflow soldering is English Reflow. By remelting the solder paste pre-distributed on the printed board pads, the soldering of the mechanical and electrical connections between the solder ends or pins of the surface mount components and the printed board pads is realized.
Parameter of reflow oven
| Model | ET-R8 | |
| Heating System | Number of heating zones | UP 8/BOTTOM 8 |
| Number of cooling zones | Up1/bottom1 | |
| Length of heating zones | 3000MM | |
| Heating mode | hot air | |
| Cooling Mode | Force air | |
| Conveyor speed | 0-1500mm/min | |
| Upper hood method | Auto | |
| Control system | Power supply | 5line 3phase 380V 50/60Hz |
| Total power | 40kw | |
| Starting power | 38kw | |
| Temp. setting range | Room temperature-300℃ | |
| Temp. deviation on PCB | ±2℃ | |
| Temp. control method | PLC & PC | |
| General | Dimension(L*W*H) | 4600×1200×1490mm |
| Weight | 900KG | |
Feature of 8 zones reflow oven
No.1 The unique advanced long life heating system
1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector to the rising temperature speed, improve the thermal efficiency. And the special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely .
2.Using special high temperature resistant protection system in heating preservation system and special iron in furnace
No.2 Smooth and reliable transmission system
1.The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth , speed range can be arrived at 0-1500mm/min.
2. Independent wheel structure support and match stainless belt to make the running smoothly and the speed precision is up to ±20 mm/min .
Special stainless belt: durable and wear-resistant, not easy to deform and long life
Shipping and Delivery
As to the part of shipping and delivery, there are three ways for your reference, and different way is for different situations:
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
As SMT manufacturer ,we can do for you:
1. We provide full SMT solution for you.
2. We provide core technology with our machine.
3. We provide the most professional tech service.
4. We have wealthy experience on SMT files.
FAQ
Can you provide a whole line solution?
Yes , we can. We can supply SMT line and some LED production lines.
Can we customize the machine?
Of course, all of our machine can be customize.
Do you have oversea after sale service?
Yes, we can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. Abroad, we have India, Turkey and Egypt office and local engineer, etc.
This is the first time I use this kind of machine, is it easy to operate?
It is easy to operate, the language of the machine is English, and we will teach you the basic operation. If you still have any questions, please contact us by e-mail, wechat, phone, Skype,Whatsapp or other contact information.
How long the delivery?
About 30 days.
