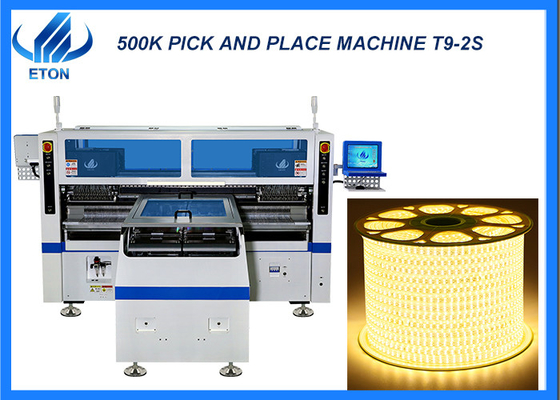

144 Heads SMT Placement Machine For LED Roll To Roll Strip Light

LED ROLL TO ROLL STRIP LIGHT 144 HEADS PLACEMENT MACHINE

Machine main features

• Wide components range: High speed modular heads apply to LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc.
• Unique design component leaking detection and individual component refill function. Recognition camera record the component leaking position of PCB, and fill the missing component accordingly.
• Ultra high speed capacity: 500,000 CPH
• Intelligent electric feeder,supporting high-speed machine series.
• Adjust the conveying platform according to various roll to roll strip, range 250±10 mm, the max length range is 1M per cycle.

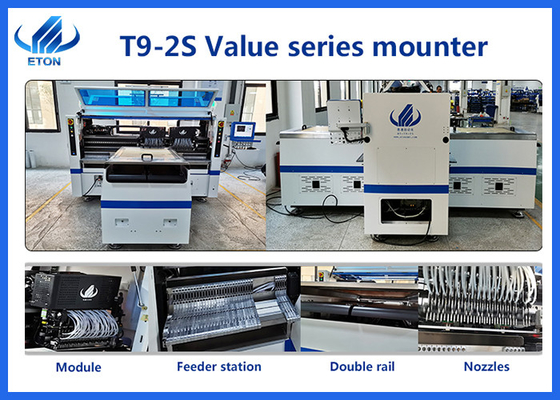

• The distance of feeder station can be flexibly adjusted to achieve group picking and group placing, so as to realize the function of two time picking and once placing.
• The range of feeder station is double of placement four kinds of materials at the same time.
• Automatic production with identification date, correction and fill missing component automatically.
• Flight recognition camera, no pause to detect the presence or absence of components, component adsorption state, prevent placement errors.
• The clamping rod is driven by the air cylinder to correct the materials taken by mounting head.
• With the function of filling missing component automatically, realize industry 4.0 Unmanned Workshop.
• Complaint with CE standards.

Machine main parameter


Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.

Packages
Step 1: Packing in film package to prevent dust and water to the machine
Step 2: Packing in foam cotton to protect the outside of the machine
Step 3: Packing in vacuum package to keep dry of the machine during transportation
Step 4: Transportation by truck to specified port

FAQ
Q. How can I look around your industrial park if I am on aboard?
A. If you have Chinese agent we can make an appointment to show you the environment, of course we also can make video call to show you the industrial park, or we will do some video to you if you need.

Q. Is the machine easy to operate?
A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.

Q.What kind of machine you have?
A. We are the high speed SMT pick and place machine manufacturer, and also we build our brand to more efficient and convenient machine for our customers. We have multifunctional type, honor series, value series with high precision and high productivity.
