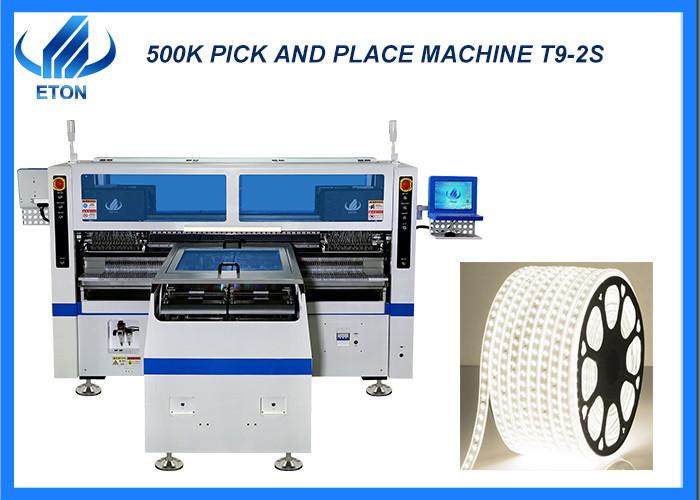

100m Roll To Roll Pick And Place Machine High Speed 500K CPH

High-speed 100m roll to roll 500K speed Pick and place machine

Description

• Wide components range: High speed modular heads apply to LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc.
• Unique design component leaking detection and individual component refill function. Recognition camera record the component leaking position of PCB, and fill the missing component accordingly.
• Ultra high speed capacity: 500,000 CPH
• Intelligent electric feeder,supporting high-speed machine series.
• Adjust the conveying platform according to various roll to roll strip, range 250±10 mm, the max length range is 1M per cycle.
• The distance of feeder station can be flexibly adjusted to achieve group picking and group placing, so as to realize the function of two time picking and once placing.
• The range of feeder station is double of placement four kinds of materials at the same time.
• Automatic production with identification date, correction and fill missing component automatically.
• Flight recognition camera, no pause to detect the presence or absence of components, component adsorption state, prevent placement errors.

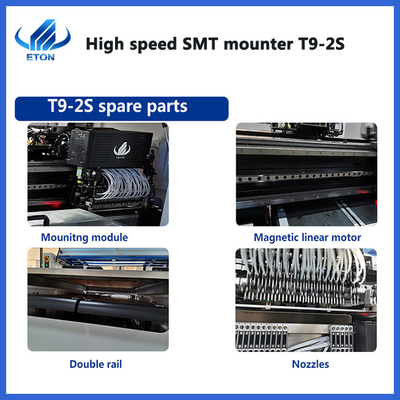

• The clamping rod is driven by the air cylinder to correct the materials taken by mounting head.
• With the function of filling missing component automatically, realize industry 4.0 Unmanned Workshop.
• Complaint with CE standards.

Machine main parameter


Our advantage
We can provide SMT line solution for you!

Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc
1.Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.
2.Provide Overseas engineers for Free installation and free training.
3.TOP brand of China SMT machine manufacturer,500 employees for ETON

Our Exhibitions
Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 30 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.



FAQ

Q. How many hours does the machine can operate per day?
A.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.

Q.How can I make inspection when something wrong with the machine?
A. Well, the inspection is taken by our professional engineer to check and modulate the machine, if you counter any problem of our machine please contact us, and we will arrange our engineer to solve it.

Q. Can you accept D/P or D/A as the payment term?
A. For our regular payment terms, we usually use T/T.
