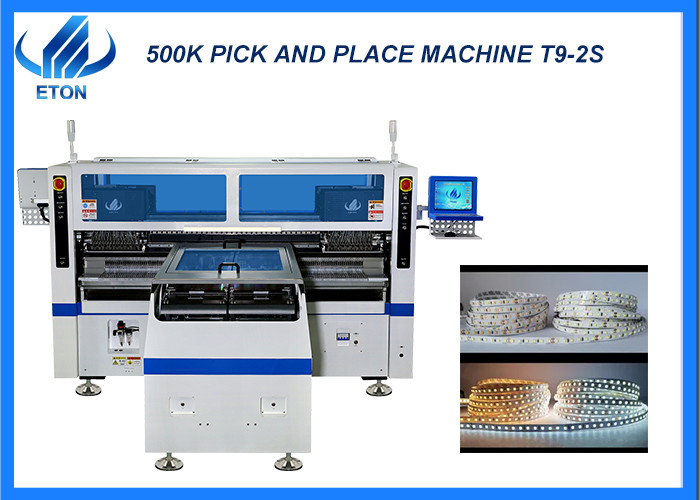

144 heads four arm for Long flexible strip light SMT machine
Machine main features
- Wide components range: High speed modular heads apply to LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc.
- Unique design component leaking detection and individual component refill function. Recognition camera record the component leaking position of PCB, and fill the missing component accordingly.
- Ultra high speed capacity: 500,000 CPH
- Intelligent electric feeder,supporting high-speed machine series.
- Adjust the conveying platform according to various roll to roll strip, range 250±10 mm, the max length range is 1M per cycle.
- The distance of feeder station can be flexibly adjusted to achieve group picking and group placing, so as to realize the function of two time picking and once placing.
- The range of feeder station is double of placement four kinds of materials at the same time.
- Automatic production with identification date, correction and fill missing component automatically.
- Flight recognition camera, no pause to detect the presence or absence of components, component adsorption state, prevent placement errors.
- The clamping rod is driven by the air cylinder to correct the materials taken by mounting head.
- With the function of filling missing component automatically, realize industry 4.0 Unmanned Workshop.
- Complaint with CE standards.
Machine main parameter
| Model |
T9-2S |
| Dimension |
(L)3454*(W)3035*(H)1777 mm |
| Total weight |
3100 kg |
| PCB size |
250(±10)mm* Any length |
| PCB thickness |
0.1-0.5 mm |
| PCB clamping |
Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting way |
Group picking and group placing |
| Mounting mode |
Double rail + Four groups of placement heads |
| No. of camera |
10 sets (Digital camera) |
| Software |
R&D independently |
| Repeat precision |
±0.05 mm |
Market
ETON company which not only provide our high speed SMT machine in Chinese market, but also overseas market to let our customer enjoy one site service, efficient production and low consumption.
Packages
Our package step is follow the blowing:
STEP 1: Film packaging to prevent the dust and water;
STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;
STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;
STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.
Delivery: by sea, air, land transport.
Related machine

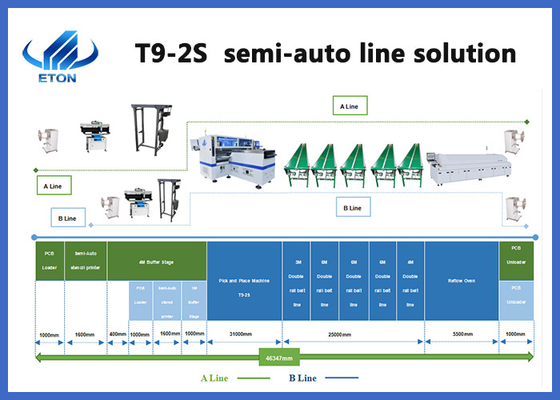

ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.
FAQ
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.
Q.Can I pay by L/C.
A.The procedure of L/C payment is complicated, which will waste a lot of time on payment. For more, you need to wait longer to get the machine, which will delay your production plan and delay the opportunity.
Q. What services can you provide?
A.
1)We provide whole line solution for our clients;
- We have local engineers in India, Egypt, Turkey. As long as you buy the machine, we will arrange engineers to install, debug and training you for free, until you learned how to operate the machine, our service is very convenient;
- We also have Chinese engineers which provide online services to operate the machine to solve the problems with the machine;
- We will visit our clients for twice a year to operate the machine and view the status of the machine;
