Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | 100% Original,Brand-new |
| Mounting Speed: | 40000 CPH | Feeders: | 28 |
| Application: | 1.2m Rigid Pcb And 1m FPCB | Local Service: | India, Egypt, Vietnam |
| High Light: | High Precision LED Mounter,LED Mounter 250000CPH,1m FPCB Pick And Place Machine |
||

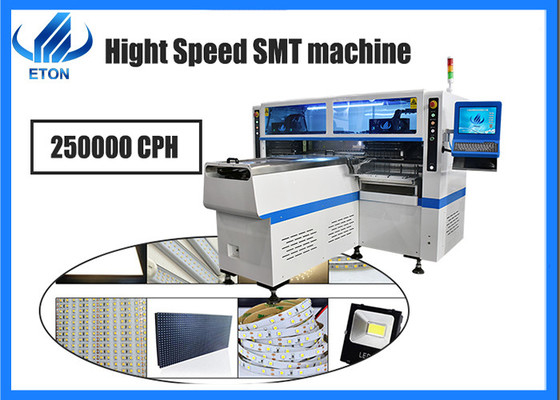

High Precision SMT LED Mounting Machine 250000CPH pick and place machine
Technical Parameter
| Dimension | Length | 2700mm |
| Width | 2300mm | |
| Height | 1550mm | |
| Total weight | 1700kg | |
| PCB | Length Width |
Max:1200*330mm |
| Thickness | 0.5-5mm | |
| Clamping | Adjustable pressure pneumatic | |
| Mounting mode | Group to take and group to mount. | |
| Vision system | No.of camera | 5 PCS |
| Feature of camera | Vision alignment,MARK correction | |
| Mounting precision | ±0.02mm | |
| Mounting height | ≤5mm | |
| Mounting speed | 200000-250000CPH | |
| Feeder station | 68 PCS | |
| Nozzles | 68 PCS | |
| components | LED3017,3020,3528,5050 and resistor,capacitor,bridge rectifiers. |
Introducing machine
| Performance introduction | |
| High precision |
With a new visual recognition system, five imported cameras, visual alignment, Mark correction technology. |
| High speed |
Producing with 2~4 types of materials with high capacity ,available for board with any proportion of LED chip and resistors. |
| Good durability |
Using High Stability Electronic Dual Motor |
Application production&component
The mahcine mainly mounting linear produce,such as tubes, flexible strips, panel lights, display screens,etc.
Honor client
ETON with more than 10 years experience in SMT LED manufacturer are our partners in China.
Some details of the machine
Remark
The delivery period is within four weeks after receiving the deposit
Term of payment:30% depositing on the date of signing contract,70% payment before delivery.
Quotation in valid:30 days
Service
1. Before order:
We will support professional suggestion of SMT line
We will recommend the best module according to the products
We will supply best quotation with factory price
2. After order:
Machine will have good test and aging before shipping
We support machine free installation and training, special time we support online training, and video teaching.
We have Professional after-sales team, could solve problem as soon as possible
Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.
FAQ
Q1:Do you provide software updates?
For customers who buy our machine, we can offer free upgraded software for you.
Q2:Does our machine need air supply?
Yes, machine needs air supply.
Q3:This is the first time I use this kind of machine, is it easy to operate?
We have English user manual and guide video to teach you how to use the machine.And also we'll arranger our overseas engineers to your factory for free installation and training.
Q4:How about the warranty?
Provide one year warranty period. Outside the warranty period, we will have 1-2 free door-to-door services every year
