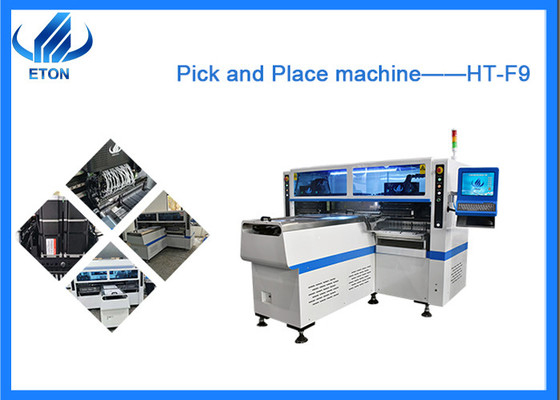

SMT LED Mounting Machine: 68 Nozzles, 250000CPH Speed with Automatic feeding
Technical Parameter
| Dimension |
Length |
2700mm |
| Width |
2300mm |
| Height |
1550mm |
| Total weight |
1700kg |
| PCB |
Length Width |
Max:1200*330mm
Min:100*100mm
|
| Thickness |
0.5-5mm |
| Clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group to take and group to mount. |
| Vision system |
No.of camera |
5 PCS |
| Feature of camera |
Vision alignment,MARK correction |
| Mounting precision |
±0.02mm |
| Mounting height |
≤5mm |
| Mounting speed |
250000CPH |
| Feeder station |
68 PCS |
| Nozzles |
68 PCS |
| components |
LED3017,3020,3528,5050 and resistor,capacitor,bridge rectifiers. |
SMT
SMT is Surface Mount Technology (surface mount technology), which is the most popular technology and process in electronic assembly industry.
It is a pin-free or short-lead surface assembly components (SMC/SMD, Chinese known as chip components) installed on the Printed Circuit Board (PCB) surface or other substrate surface, welded and assembled by reflow or dip welding and other methods of circuit installation technology.
Application production&component
The mahcine mainly mounting linear produce,such as tubes, flexible strips, panel lights, display screens,etc.
Honor client
ETON with more than 10 years experience in SMT LED manufacturer are our partners in China.
Some details of the machine
Service
Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free
Visit customer regularly and gather information.
Provide latest information about technology and equipment.
Related SMT machine:
We can provide you a whole SMT line solution and equipment, you can look this picture, we have semi-auto/full-automatic stencil printer, glue dispenser(this machine is mainly for making led lens), conveyor, reflow oven, etc.
We can meet your any demands for equipment, and pursue quality higher than price for machine manufacturing.
What is a pick and place machine used for?
Surface mount technology (SMT) is a widely adopted technique by electronic manufacturers for the production of small and medium-sized circuit boards. A pick and place machine, commonly known as a surface mount technology machine or a SMT machine, is a type of robot that enables placing electronic components onto the printed circuit boards (PCBs) effortlessly and with high precision.
The primary function of a SMT machine is to automate the process of placing numerous electronic components onto the PCB. The machine follows an automatic procedure where a feeder feeds electronic components, and a camera recognizes the components before securely placing them on the designated destination on the PCB. This operating technique not only enhances the precision of placing the components but also streamlines the process of assembly at a faster rate.
SMT machines have evolved over the years, and modern machines come with several features that allow them to carry out additional functions. The advanced machines have the capability of being able to adjust the PCBs' orientation, handle a wider range of component shapes and sizes, and fix the components at a faster rate than their predecessors. Additionally, the machines have the ability to work simultaneously on different PCBs, which has made them a valuable asset in large-scale electronic manufacturing.
In conclusion, SMT machines have revolutionized the electronic manufacturing industry, enabling manufacturers to produce small and medium-sized circuit boards proficiently and at a faster rate. The automated process of component placement is precise and efficient, which has improved the quality of product output. This has made SMT machines an invaluable asset for electronic manufacturers that strive to stay competitive and maintain high-quality standards in their industries.
