Product Details:
Payment & Shipping Terms:
|
| Dimension(L*W*H): | 1490*2020*1650mm | Weight: | 2080kg |
|---|---|---|---|
| PCB Length Width: | Max Size:500*470mm | PCB Thickness: | 0.5~5mm |
| Repeat Precision: | ±0.03mm | Mounting Height: | ≤20mm |
| No.of Camera: | 2 PCS | Components Range: | Min 0201~12*12MM Packages And IC Etc |
| Rail: | Rail 1 Is Fixed | Power Consumption: | 220AC 50HZ 1.5KW |
| Optimum Mounting Speed: | 48000CPH | No. Of Feeders Station: | Standard 52 PCS |
| No. Of Head: | 10 PCS | Feeding Way: | Intelligent Electric Feeder With Double Motor |
| High Light: | SMT Chip Mounter CCC,SMT Chip Mounter for LED Lights,SMT Chip Mounter for Power Driver |
||

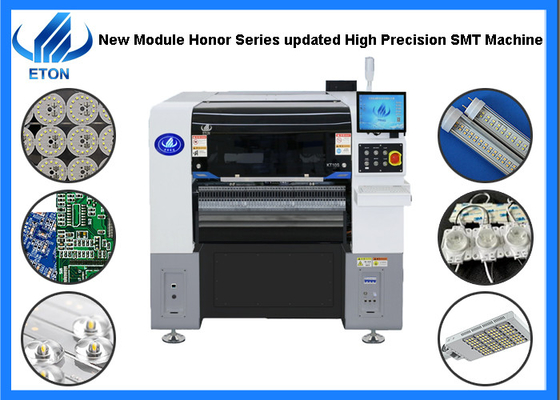

New Module Honor Series updated High Precision SMT Machine
Features
1.High speed and intelligent, ultra performance
adopt high speed multi modular head, apply to ultra small chip 0201-40*40mm large chip, wider component range
improve recognition performance size up to 40*40mm, apply to BGA 0R CSP etc.
each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product.
optimum placement speed reach 48000 CPH.
Machine main parameter

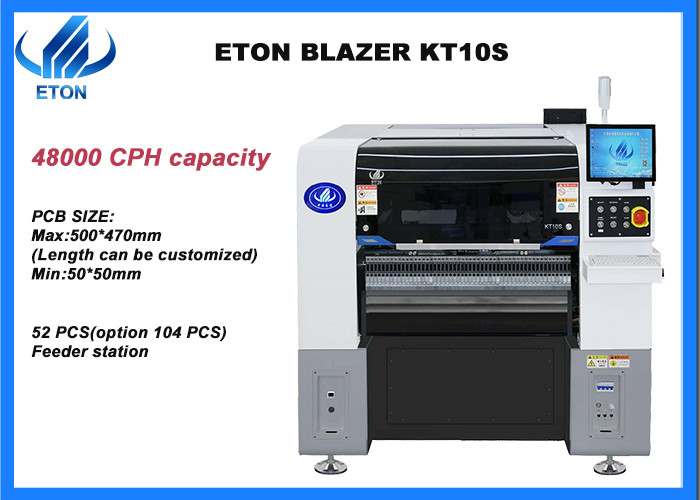

| Model | KT10S |
| Dimension | 1460*2015*1654mm |
| Total weight | 2080kg |
| PCB size | Max:500*470mm(Length can be customized) Min:50*50mm |
| PCB thickness | 0.5-5mm |
| Mounting precision | CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ) |
| Mounting speed | 48000 CPH(Optimal speed) |
| Components | LED, capacitor, resistors, shaped components,etc |
| Power consumption | 220AC 50HZ 1.5KW |
| Feeder station | 52 PCS(option 104 PCS), IC tray option |
| No. of head | 10 PCS |
DOB Bulb making machine line
DOB Bulb making machine SMT Line is included stencil printer machine, conveyor, pick and place machine, reflow oven machine.
And this line is also not only suitable for making DOB, but also could be produce other led lighting, like the down-light, street light, panel light, driver board, etc.
Company Introduction
Since its establishment in 2011, ETON has been committed to the development and production of SMT placement machines.
1. Strong reach and develop technology team, support machine upgrade continuously, support client strong technical support.
2. Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Our advantages:
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Our machines are of better quality, more accurate and faster to mount. We also have our own exclusive patented technology such as dual motor electronic Feeder feeding system, flight identification visual alignment, group picking and group placing and so on.
Client
Our products not only sell well in China, but also exported to more than 20 overseas countries,
such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil, Iran and so on.Some
listed companies including Changfang, Wanrun Technology, Mulinsen, Linghang, Century Classic, Zhuhai Taobo, Huizhou Guozhan Electronics, etc. have become our customers.
Service
Introduction of exhibition
ETON is a very strong and powerful company. We attend many exhibitions every year.
Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul, Egypt Cairo, Russia Moscow, Vietnam Hanoi etc.
We occurred 85% percent in China LED lighting markets, but also send machines to India, Korea, UK, Russia, Egypt, Turkey, Vietnam, Japan, Australia, Poland, etc more than 20 countries.
Working with ETON is guaranteed, let’s light up your business!
ETON is committed to building an international brand, dominated by SMT machines, to show the word the technological strength of our brand, and to show the quality of our machines on a global scale.
In the past, we have participated in many LED lighting exhibitions and professional equipment exhibitions in India, Vietnam, Thailand, Turkey, Egypt and other countries.
Package and Delivery of Pick and Place Machine
Filming packing:Make the machine sanitary, clean, sealed packaging, dust and humidity; have good shock resistance, impact resistance, and good protection performance with tightness and fixity.
vacuum packing:Advantages of moisture proof,dust proof and so on.
wooden packing: It has good cushioning performance, corrosion resistance, high strength and hygroscopicity, moisture-proof and earthquake-resistant functions.
Our after-sales service of Pick and Place Machine
FAQ
1:Do you provide installation service?
A:We have engineer in India, Turkey, Egypt.
2:Are you a factory or trading company?
A:We are a professional manufacturer of mounter.And we have our own brand mounter production line.
3:Does the price include nozzles and feeders?
A:We don't include nozzles and feeders,because each customer requires different nozzles and feeders.
