| Name: | Pick And Place Machine | Applicable Components: | 0402,SOP,QFN,IC,0805 |
|---|---|---|---|
| Dimension: | 2550*1650*1550mm | Application: | SMT Production Line,LED Pick And Place,smd Pick Place,LED Production |
| Software: | R&D Independently | Warranty: | 1 Year |
| Total Weight: | 1250kg | Speed: | 45000CPH |
| Nozzles: | 12PCS | Feeders: | 28 PCS |
| Name: | Low Cost Automatic Smd Led Mounting Machine For Industries,Pick Amd Place Machine\LED Mounter\led Assembly Machine,SMT Pick And Place Machine,LED Chip Mounter,PCB Pick And Place Robot Machine SMD LED Mounting Machine | Power Supply: | 220V,50/60Hz |
| Type: | SMT Machine Related Products,Automatic,LED Machine | Condition: | 100% Original,Brand-new |
| High Light: | Camera Vision LED Mounting Machine,LED Mounting Machine With Camera Vision,12 Heads SMD Mounting Machines |
||
Feature of smd placement machine
With the rapid development of the LED industry, the automation equipment products, quality requirements are higher, ETON automation launched HT-E8S automatic multi-functional pick and place machine;
HT-E8S smt machine XY axis drive by magnetic linear motor,and Z axis drive by servo motor;New design improve the stablility and precision;
E8S palcement machine equipped with MARK vision + flight vision Camera. bulbs scan camera for lens;
The pursuit of high-speed completion of the mounting, while fully ensuring the stability of high-speed operation of the equipment, is a cost-effective LED multi-functional placement machine.
Performance of smd placement machine
1.Feeder system
The feeding way is electric feeder with double motor,keep the machine running at high speed.
2.Camera Vsion Sytem
2 sets of imported camera,vision mark ,Visual Mark, Automatic Search for Mark Points.keep high precision.
3.Automatic Feeding function
Maximize Time Saving and Improve Production Efficiency.Improve accuracy and avoid defective products.

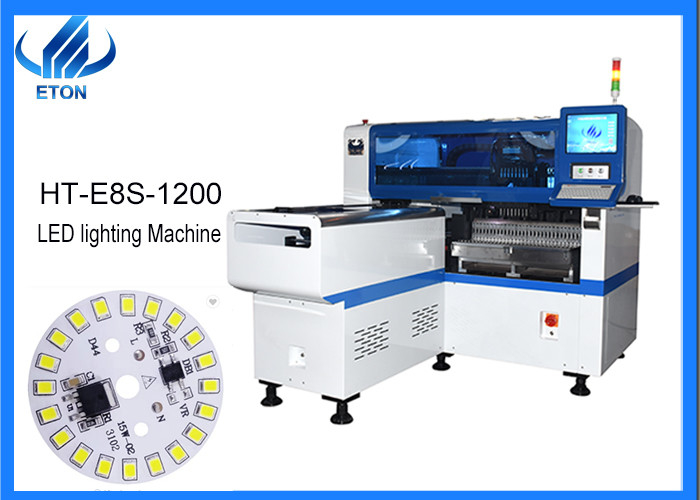

HT-E8S pick and place machine
| HT-E8S pick and place machine | ||
| PCB | PCB length width | Max:1200*300mm min:100*100mm |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 40000CPH | |
| Components space | 0.2mm | |
| No.of feeders station | 30PCS | |
| No.of nozzles | 8PCS | |
| Power | 380AC 50HZ | |
| Power consumption | 4KW | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | Electric feeder with double motor | |
Application of smd placement machine
E8S palcement machine apply for widely range producs :
fluorescent lamp, bulb lamp, ceiling light, panel light, cast light lamp, mining lamp, down light, etc
Lighting: soft light tube, hard tube, advertising module, etc
Pasting class: LED watch pasting
After services of smd placement machine
lwe will send our engineer to your factory to install machine and training freely.
lWe have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.
lStandard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
